Heavy-Duty Crusher Blades for Impact Recycling
Engineered for extreme impact recycling machinery. Shark Cutting manufactures high-precision, wear-resistant crusher blades designed to eliminate edge chipping and deliver continuous throughput in demanding reduction applications. Explore our line of specialized cutting products.
Engineered Wear Resistant Crusher Blades: Precision High Chromium Steel Solutions
Shark Cutting manufactures heavy-duty wear resistant crusher blades specifically engineered to withstand severe mechanical impact, abrasive polymer friction, and high-load size reduction operations. As part of our comprehensive lineup of industrial machine knives, our precision-ground blades utilize premium high chromium steel alloys—including D2, SKD11, and H13 tool steels—to provide extreme edge retention, eliminate micro-chipping, and maximize throughput across high-capacity recycling systems worldwide.
Refined Metallographic Microstructure
Forged from imported D2, SKD11, and H13 high-chromium tool steels, our blades undergo multi-stage deep cryogenic stabilization to transform retained austenite into a high-density martensite matrix.
- Zero Edge Chipping: Fine grain boundaries withstand severe shock loads without fracturing.
- High Alloy Content: Premium chromium and vanadium carbide matrix ensures maximum abrasion resistance.
Micron-Tolerance CNC Edge Grinding
Every blade is precision ground on multi-axis CNC machinery to micron tolerances. Strict edge parallel alignment ensures optimum cutting clearance between rotary and stationary knives.
- Extreme Tolerances: Precision dimensional accuracy maintained within ±0.01mm.
- Low Thermal Friction: Mirror-polished bevel surfaces minimize material drag and polymer melting.
Dual Hardness & Impact Toughness Balance
Our proprietary vacuum heat treatment and differential tempering yield an ultra-hard cutting edge backed by a ductile shock-absorbing core to prevent sudden shear failures.
- Optimal Hardness: 58–62 HRC surface hardness engineered for extended service life.
- Core Shock Absorption: High-impact toughness core absorbs heavy dynamic stresses during purging.
Modular Universal Quick-Change Design
Engineered with mounting geometries that match leading global recycling equipment brands, Shark Cutting blades enable fast, drop-in replacement to minimize operational downtime.
- Broad OEM Compatibility: Perfectly fits claw, paddle, staggered, and flat rotor configurations.
- Rapid Servicing: Standardized bolt-hole alignment simplifies knife gap setting and field changeout.
Alloy Grade & Metallurgy Performance Matrix
Compare specialized tool steel formulations to select the ideal high chromium steel blade for your recycling requirements.
| Alloy Grade | Primary Composition | Hardness Range | Impact Resistance | Abrasive Wear Life | Recommended Application |
|---|---|---|---|---|---|
| D2 High-Carbon High-Chromium | 1.5% C, 12.0% Cr, 1.0% Mo, 1.0% V | 58–60 HRC | Moderate to High | Superior | PET bottle flakes, rigid HDPE, engineering plastics, composite regrind |
| SKD11 Premium Cold-Work Tool Steel | 1.4–1.6% C, 11–13% Cr, Mo/V balance | 59–61 HRC | High Balanced | Exceptional | Film cutting knives applications, agricultural woven bags, thin-wall containers, PP strapping |
| H13 Heavy-Duty Shock-Resistant Steel | 0.4% C, 5.0% Cr, 1.3% Mo, 1.0% V | 52–55 HRC | Extreme Impact | High | Heavy-wall pipe purgings, thick injection blocks, automotive scrap |
| Tungsten Carbide Inlay Composite | Fine WC matrix with Cobalt binder | 88–91 HRA | Controlled Impact | Maximum Industrial | Highly abrasive glass-filled polymers, fiber-reinforced plastic regrind |
Advanced Vacuum Quenching & Deep Cryogenic Heat Treatment
Conventional heat treatment leaves behind soft, unstable retained austenite inside tool steel. At Shark Cutting, every high chromium steel blade undergoes computer-controlled vacuum quenching followed by deep cryogenic treatment at -196°C (-320°F). This sub-zero thermal exposure drives complete transformation into ultra-hard martensite, guaranteeing structural integrity under intense shock load.
Elimination of Residual Stresses
Sub-zero thermal cycling relieves internal machining stresses, eliminating blade warping, bowing, and micro-cracking during heavy-duty shredding.
Precipitation of Fine Eta-Carbides
Cryogenic stabilization forces sub-micron secondary carbide particles to precipitate uniformly throughout the alloy matrix, increasing wear resistance by up to 35%.
Extended Regrind Intervals
Homogeneous microstructure ensures uniform wear along the entire cutting edge, significantly reducing sharpening frequency and maintenance costs.

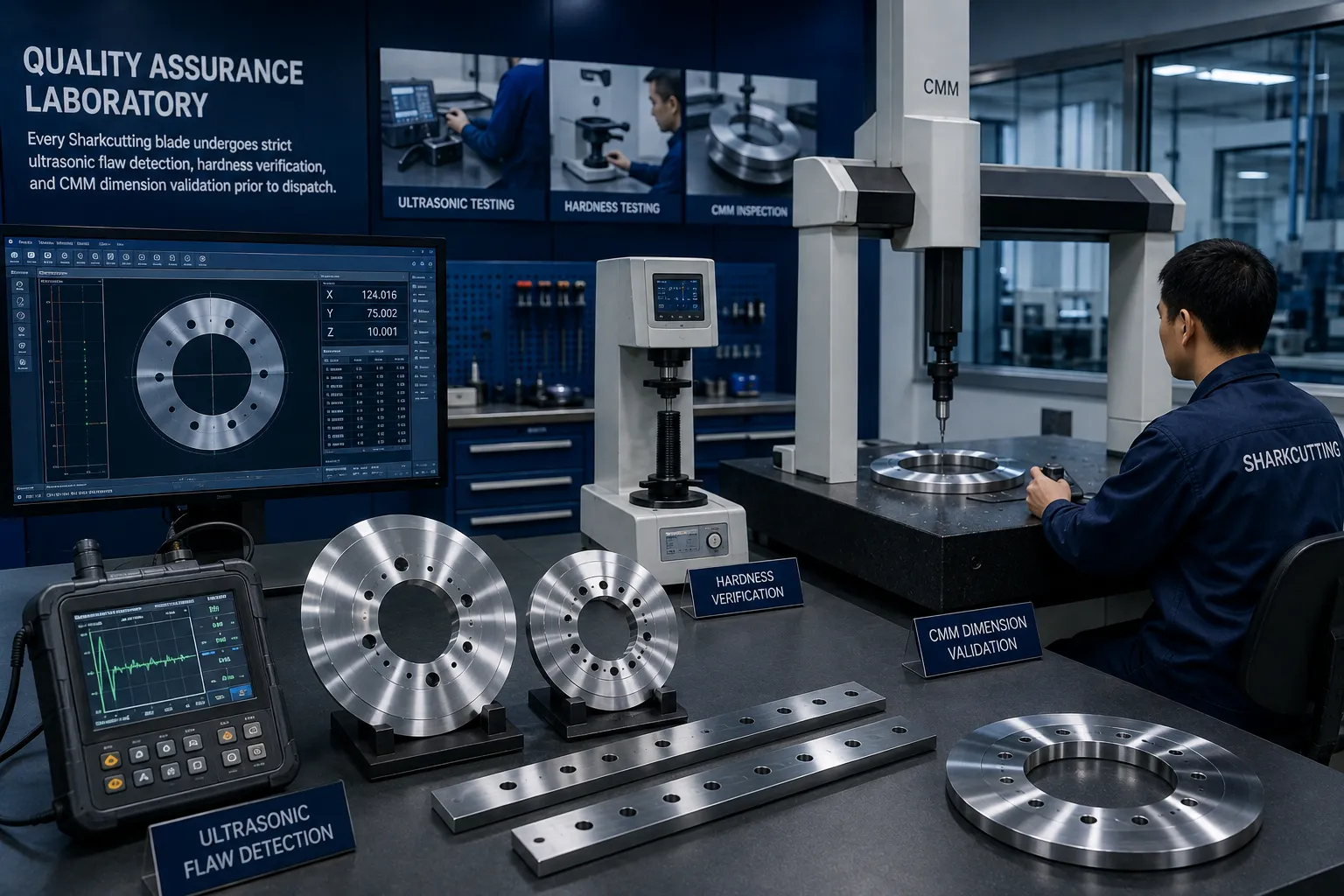

Rigorous ISO-Compliant Quality Assurance Standards
To ensure maximum operational reliability, every wear resistant crusher blade produced by Shark Cutting passes multi-stage mechanical and non-destructive quality testing before shipment. We deliver consistent dimensional accuracy, zero micro-defects, and certified metallurgy.
- ✓ 3D Coordinate Measuring Machine (CMM): Verifies mounting hole centers, bevel angles, and overall thickness tolerances within ±0.01mm.
- ✓ Ultrasonic Non-Destructive Flaw Detection: Scans internal steel billets to ensure 100% material density without internal voids, micro-cracks, or inclusions.
- ✓ Optical Metallographic Analysis: Confirms complete martensitic grain refinement and uniform carbide distribution according to ASTM standards.
- ✓ Multi-Zone Rockwell Hardness Testing: Measures surface and core hardness across multiple test points to ensure uniform strength and toughness.
Custom Edge Profiles & Engineering Support
Need custom blade clearance, bevel geometry, or exact OEM dimension matching? Send us your drawings, equipment model, or processing requirements. Shark Cutting engineers will recommend the optimal blade geometry and material for your application.
Industrial Granulator Blades & Crusher Knives
Engineered for extreme wear resistance, high-impact toughness, and precise cutting clearances. Browse our standard blade configurations or explore our full range of industrial cutting products.
Need Custom OEM Dimensions?
We custom-manufacture blades to match your exact bolt hole pitches, bevel angles, and alloy requirements, including specialized solutions like shear slitting knives for converting machinery.
Explore Custom Engineering
D2 / SKD-11 Heavy-Duty Claw Blade
Engineered to shatter thick-walled purgings, dense runners, and rigid thermoplastics through high-impact point force.

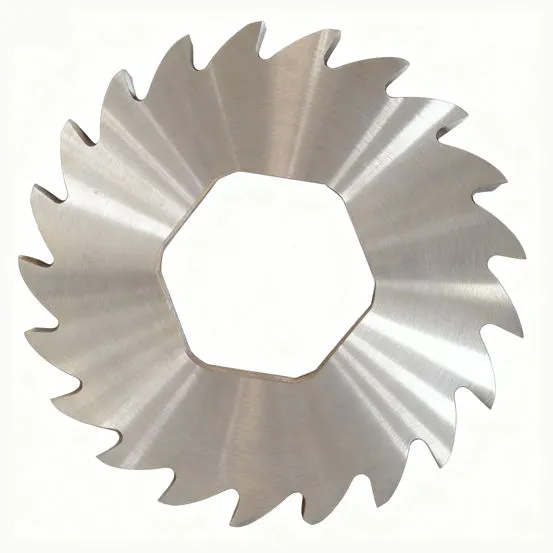

Cr12MoV Multi-Tooth Claw Blade
Features staggered multi-tooth geometry for continuous bite, reducing motor torque loads during high-volume processing.

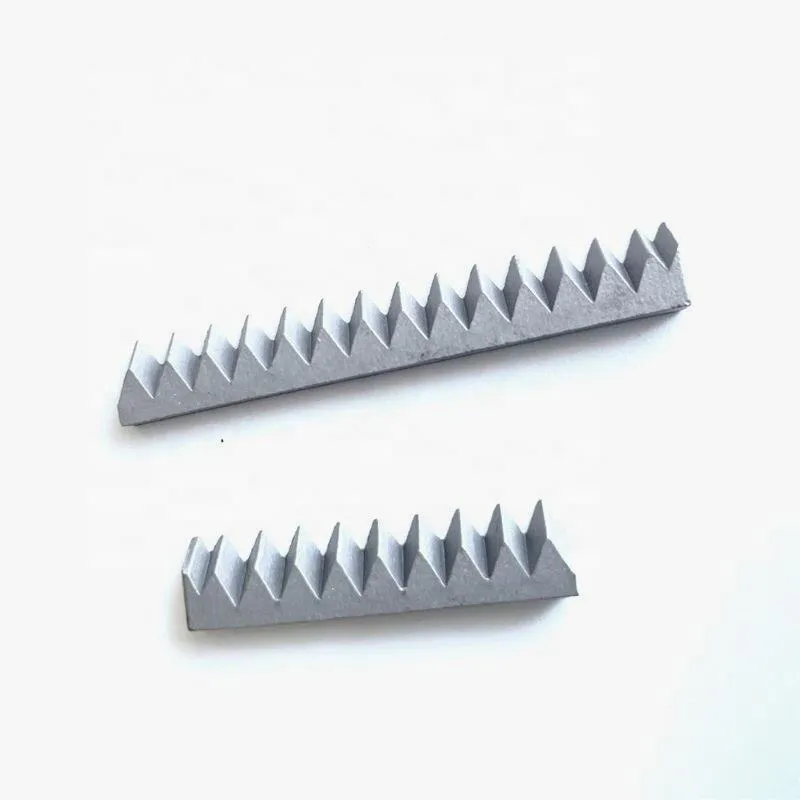

High-Chrome D2 Staggered Claw Blade
Balances cutting forces across staggered tool edges to minimize power consumption when sizing tough engineering polymers.
Standard Granulator Blade Technical Specifications
Filter stock dimensions, bolt hole centerlines, alloy compositions, and compatible machinery applications. Looking for circular slitting equipment? Check out our circular slitter knives line.
| Model Series | Blade Configuration | Dimensions (L × W × T) | Bolt Hole Pitch | Alloy / Steel Grade | Target Polymer Application | Action |
|---|---|---|---|---|---|---|
| SK-CL300 | Claw Blade | 300 × 120 × 22 mm | 150 mm (2 Holes) | D2 / SKD-11 | Rigid ABS, PC, Solid Purgings | Request Quote |

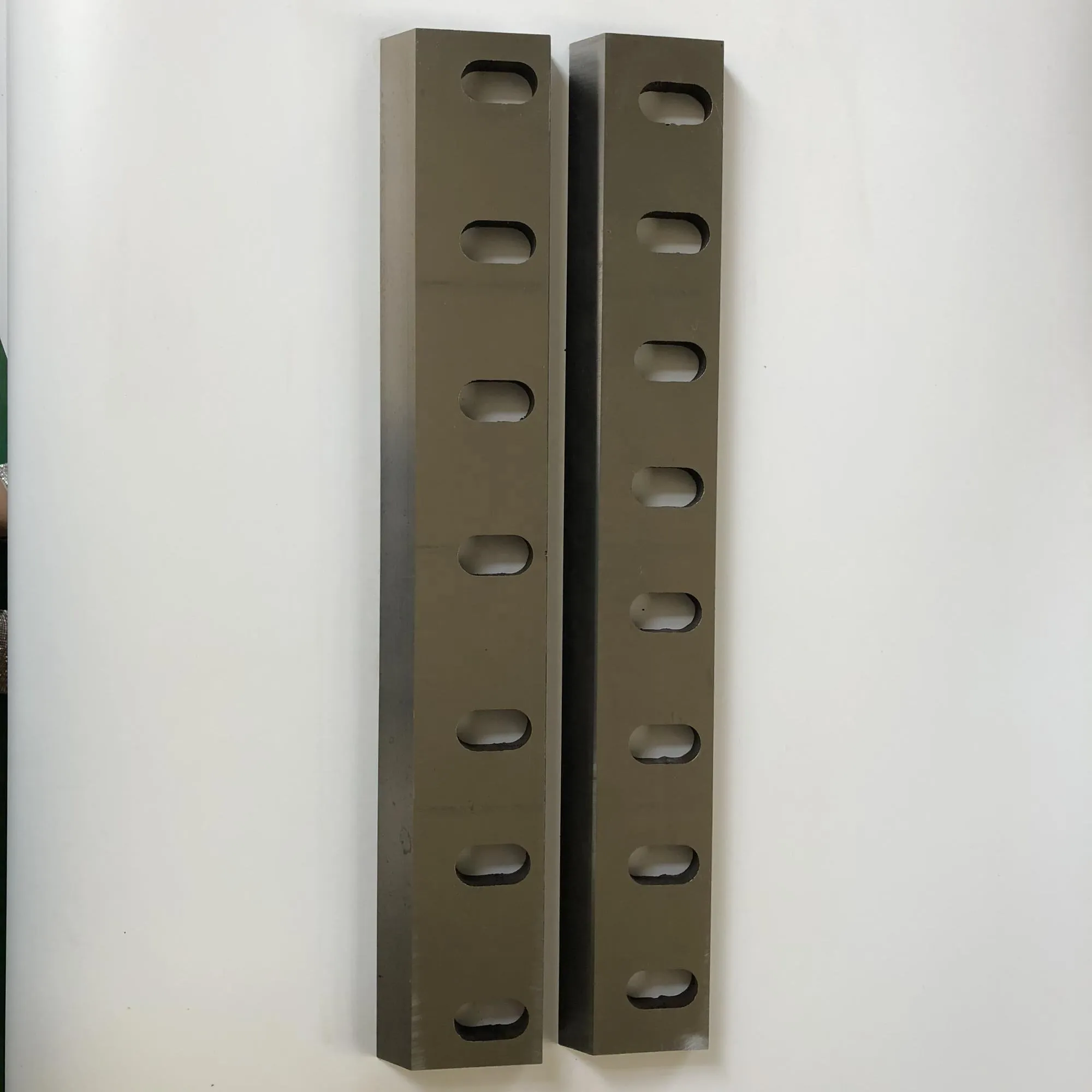

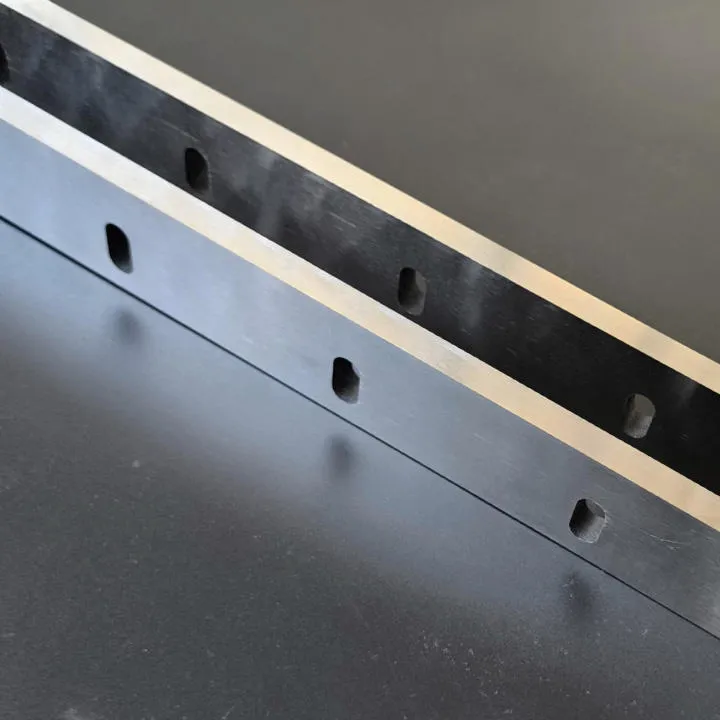

| SK-FL450 | Flat Blade | 450 × 100 × 18 mm | 200 mm (3 Holes) | Cr12MoV | PE/PP Film, Strapping Belts | Request Quote |

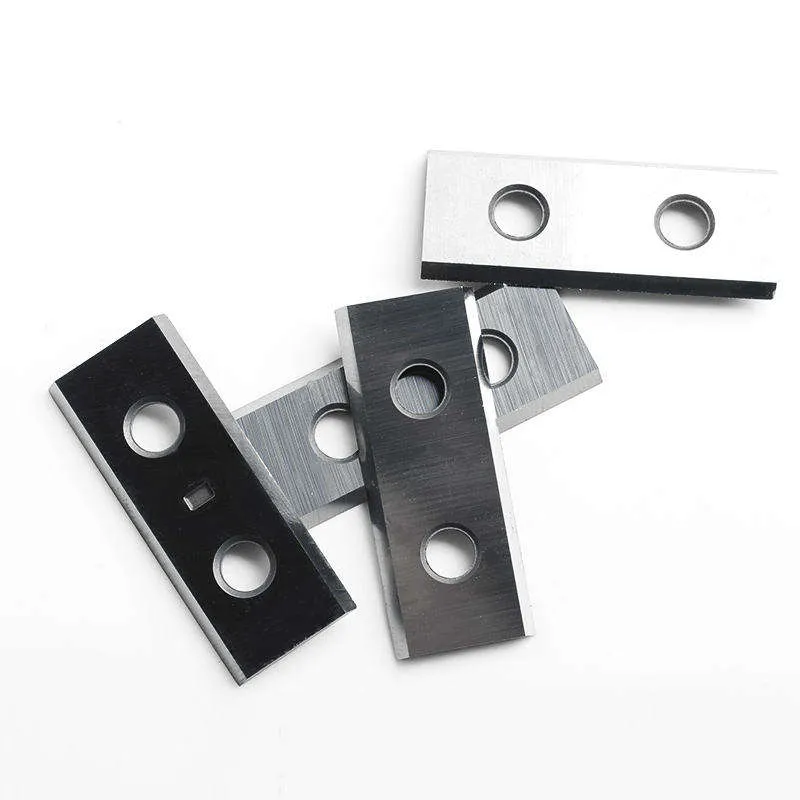

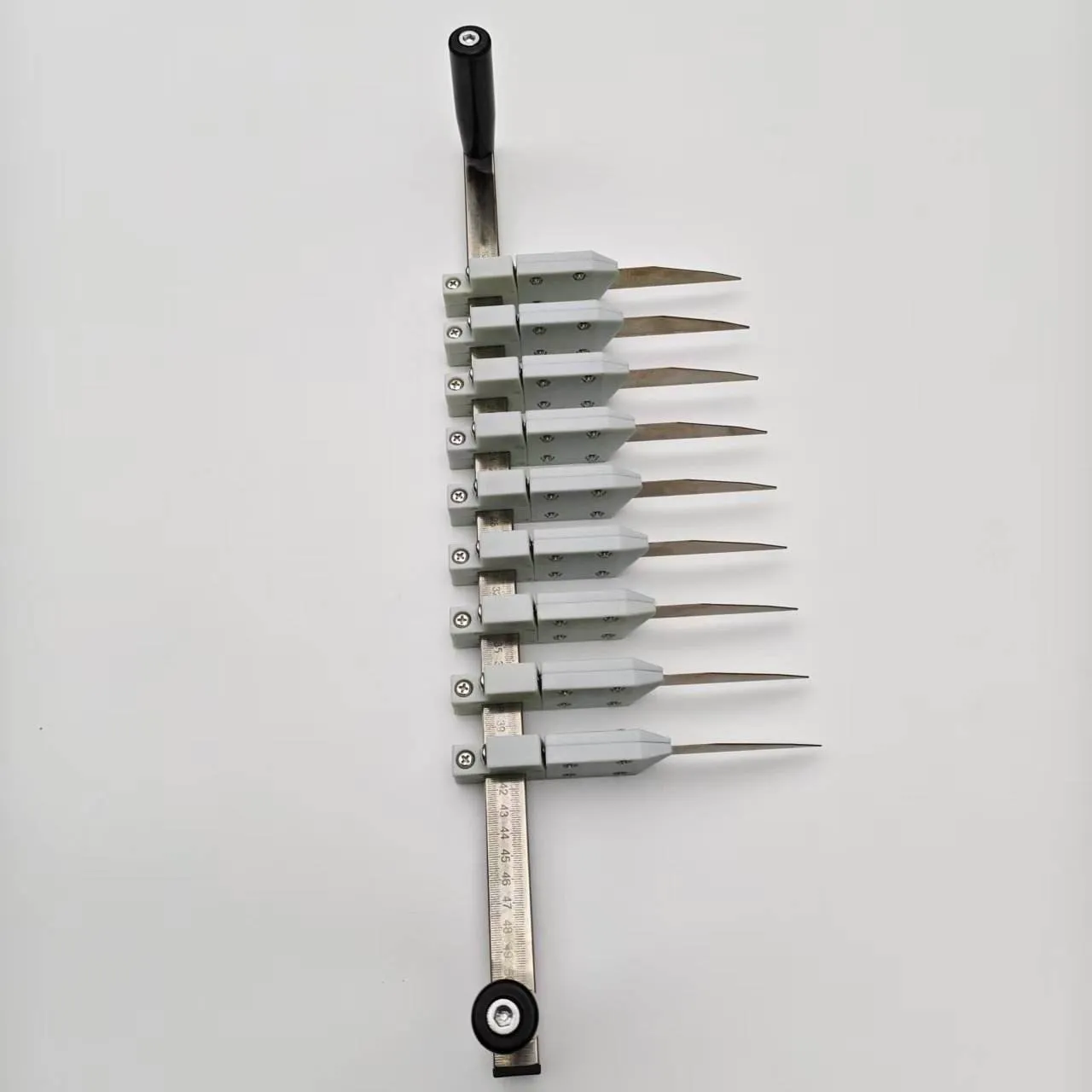

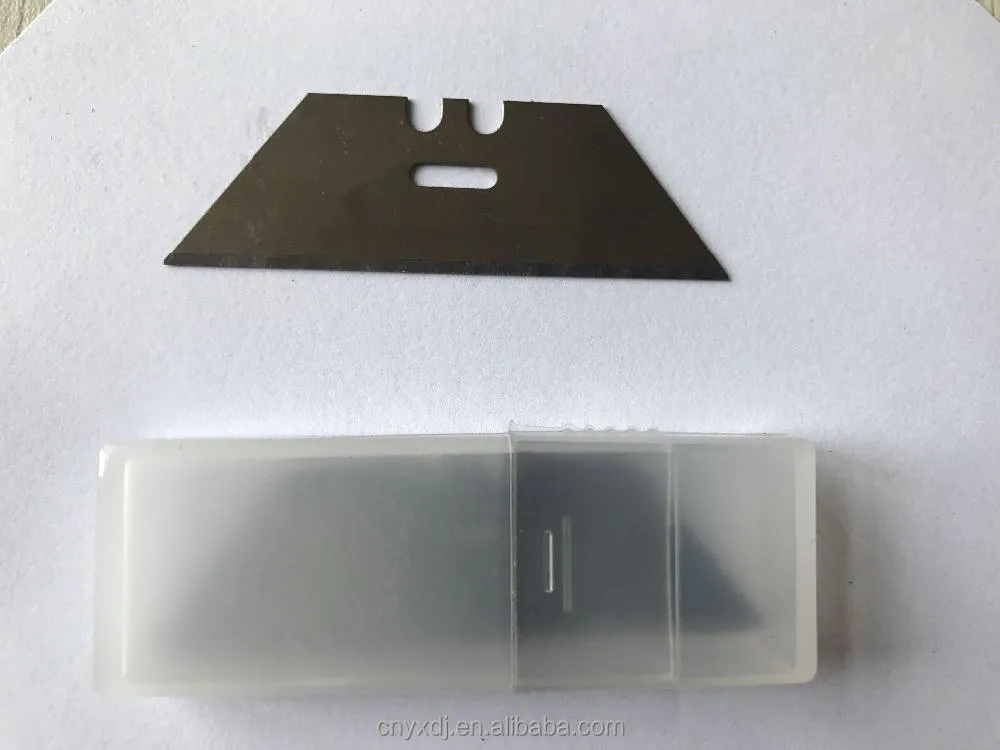

| SK-ST500 | Stationary Bed | 500 × 90 × 20 mm | 220 mm (4 Holes) | High-Chrome D2 Steel | PET Bottle Flakes, Sheet Scrap | Request Quote |
| SK-CL600 | Claw Blade | 600 × 150 × 30 mm | 280 mm (3 Holes) | D2 / SKD-11 | Heavy Wall Pipes, Large Purgings | Request Quote |
| SK-FL600 | Flat Blade | 600 × 110 × 20 mm | 250 mm (4 Holes) | SKD-11 | Film Rolls, PP Woven Sacks | Request Quote |
Application Scenarios for Plastic Recycling Blades & Granulator Knives
Industrial material size reduction demands extreme mechanical durability and precise shear dynamics. Solid profile scrap, heavy purging blocks, and contaminated composite materials present tough shear resistance challenges that quickly dull or fracture standard cutting edges. High-performance plastic recycling blades engineered by Shark Cutting are built to withstand severe shock loads, prevent micro-chipping, and deliver uniform granule output across high-throughput processing environments. Explore our complete range of industrial blade products to find the optimal cutting solution for your machinery.

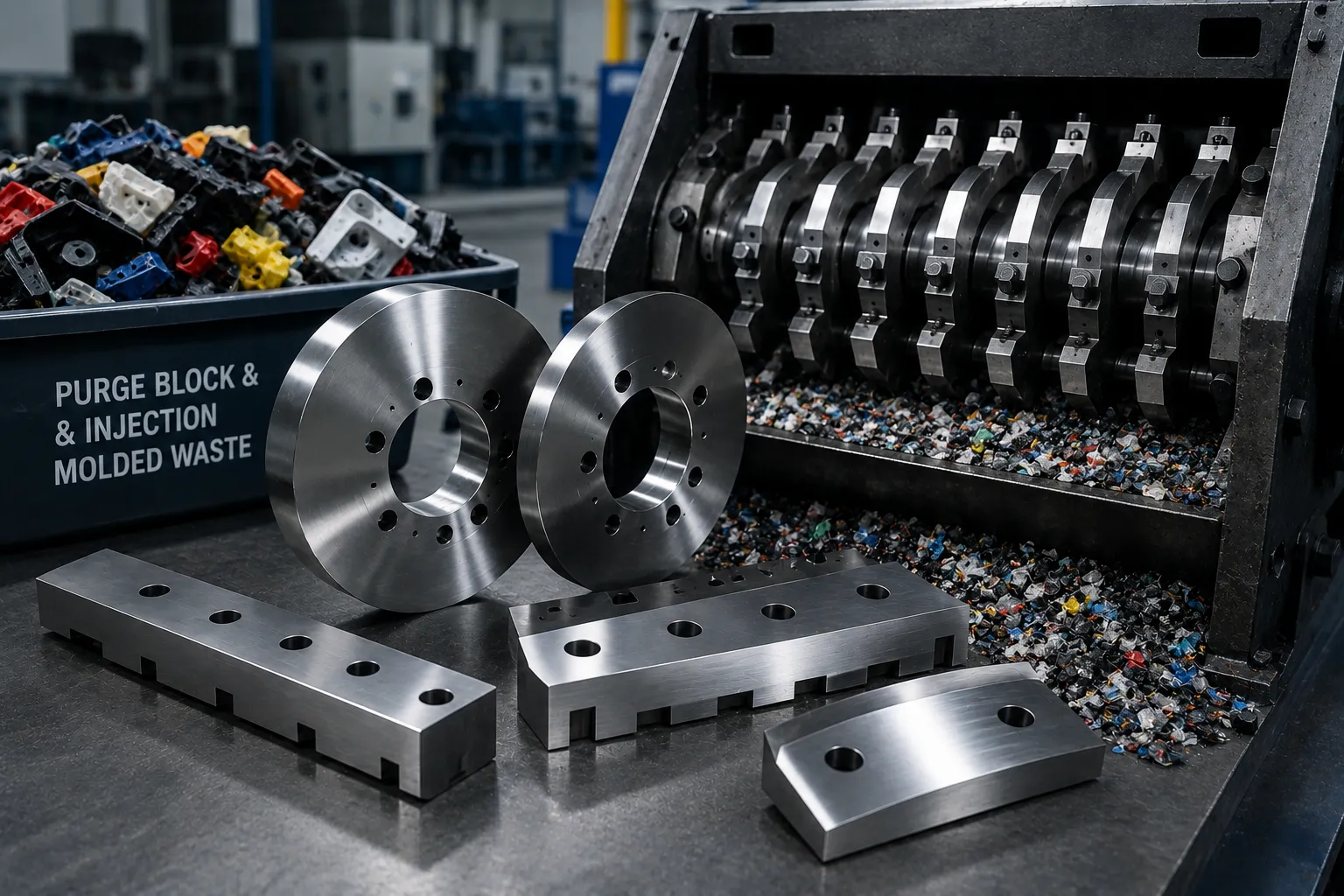

Purge Block & Injection Molded Waste Crushing
Large injection molding purge blocks, heavy startup lumps, and solid runners create intense intermittent shock loads during primary size reduction. Conventional granulator knives frequently suffer from edge distortion or catastrophic cracking under these extreme impact stresses.
- ✓ Impact Shock Resistance: Deep cryogenic heat treatment neutralizes internal stress to prevent edge chipping during heavy, high-velocity material impact.
- ✓ Thermal Friction Control: Precision-ground bevel angles reduce shear friction, preventing polymer thermal degradation, melting, or discoloration.
- ✓ Zero Structural Chipping: Toughened core metallurgy enables maximum torque transfer through dense purge blocks without blade fracture.

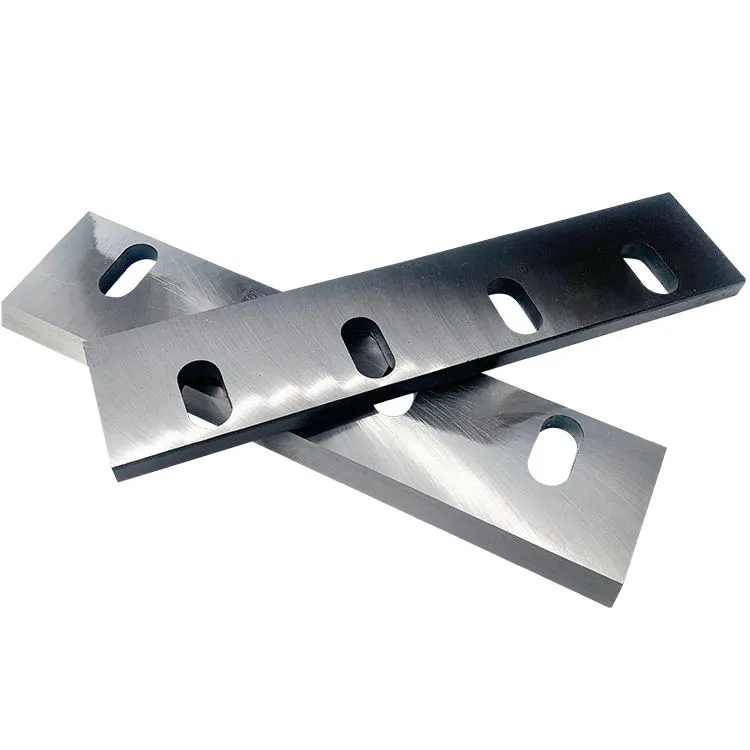

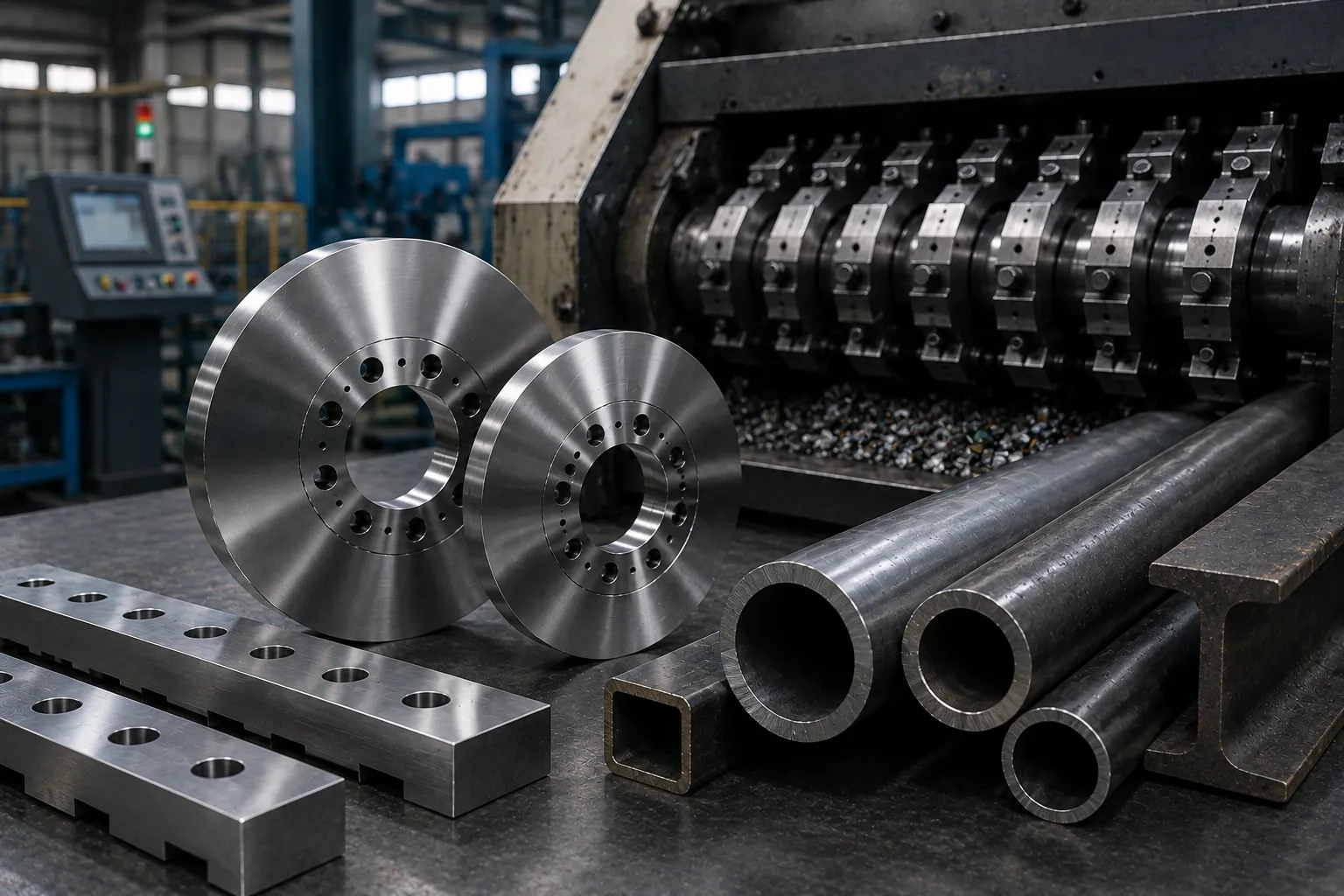

Thick Wall Pipe & Heavy Profile Processing
Granulating continuous HDPE gas pipes, solid PVC conduit, and heavy structural profiles demands specialized cutting geometry. Heavy-duty thick wall pipe crusher knives provide clean, high-torque scissor cuts without material binding, excessive dust fines, or stringy regrind, utilizing advanced shear slitting knives technology adapted for heavy impact environments.
- ✓ Clean Shearing Action: Controlled blade-to-counter clearance prevents soft polymer drag and eliminates long, uncut stringy output.
- ✓ Low Dust Generation: Razor-sharp CNC ground edges yield uniform, clean-cut granules ready for immediate re-extrusion or compounding.
- ✓ Continuous High Output: Abrasion-resistant alloy formulations retain cutting edge sharpness across extended, continuous production runs.
Automotive Scrap & Composite Material Recycling
Automotive bumpers, instrument panels, wiring harnesses, and glass-filled composites contain abrasive additives and mixed polymer blends. Beyond heavy granulation, manufacturing lines converting synthetic sheets or films also utilize specialized slitting knives to maintain high efficiency across diverse industrial converting workflows.
High-chromium tool steel matrix resists micro-abrasive wear caused by glass-reinforced polyamides and reinforced engineered resins.
Optimized core toughness absorbs minor non-crushable metallic contaminants without experiencing catastrophic blade breakage.
Delivers tight regrind size distribution to streamline downstream washing, optical sorting, and extrusion lines.
Material Compatibility & Regrind Output Preview
Hover over or select a target polymer below to examine optimized blade edge geometries, recommended tool steel grades, and target regrind particle sizes. For different industrial materials, Shark Cutting provides tailored bevel angles and metallurgy configurations to optimize recycling efficiency.
Heavy wall pipe and thick container scrap require progressive double-bevel cutting edges with tight counter-knife gap clearance (0.15mm to 0.25mm). High-chromium D2 tool steel provides maximum protection against surface galling and high-impact fatigue.
Technical Material & Blade Matching Matrix
Match your specific recycling applications with recommended blade metallurgy, target Rockwell hardness ranges, and key operational advantages.
| Application Scenario | Scrap Material | Recommended Metallurgy | Edge Hardness | Primary Benefit |
|---|---|---|---|---|
| Heavy Purge Reduction | ABS, PC, Injection Lumps | H13 / Modified D2 | 54 - 57 HRC | High impact toughness & shock absorption |
| Thick Pipe Shredding | HDPE, PVC Conduits | D2 / SKD11 | 58 - 60 HRC | Zero stringing, clean shear action |
| Film & Sheet Shearing | LDPE, PP Film, PET Flakes | High-Chromium D2 | 60 - 62 HRC | Extended wear life, razor sharpness retention |
| Composite Shredding | PA66 Glass Filled, Cables | Tungsten Carbide Inlaid | 62 - 65 HRC | Maximum abrasive wear resistance |
Crusher Blade Metallurgy and Heat Treatment Engineering Guide
Understanding the material science behind industrial cutting tools is critical for maximizing operation uptime and reducing long-term maintenance costs. As a specialized crusher blade manufacturer, Shark Cutting integrates certified high-alloy raw materials with multi-stage vacuum heat treatment and deep cryogenic processing. The result is custom heavy duty crusher blades engineered for extreme mechanical impacts and long-term wear resistance under severe recycling conditions.
Material Grade Performance Comparison
Selecting the appropriate alloy formulation directly influences blade edge stability, impact resistance, and resharpening intervals. Shark Cutting manufactures custom blade specs for diverse recycling blades applications, spanning high chromium steel blades to specialized shock-resistant formulations.
D2 Tool Steel High Chromium
Hardness 58 to 62 HRCPremium high-carbon, high-chromium tool steel engineered for superior abrasion resistance and long service life. Recommended for heavy duty plastic granulators processing abrasive rigid polymers and glass-filled plastics.
- High resistance to abrasive wear
- Deep hardening characteristics
- High capacity volume crushing
| Steel Grade | Hardness Range | Wear Resistance | Impact Toughness | Primary Application |
|---|---|---|---|---|
| D2 Grade Steel | 58 to 62 HRC | 9.5 out of 10 | 7.5 out of 10 | Rigid polymers HDPE PET flakes |
| SKD11 Alloy | 58 to 61 HRC | 9.0 out of 10 | 8.0 out of 10 | Plastic crusher knives and fine film shear |
| H13 Shock Steel | 52 to 56 HRC | 7.0 out of 10 | 9.8 out of 10 | Thick wall pipe crusher knives and heavy purge |
| Tungsten Carbide Inlay | 88 to 92 HRA | 10 out of 10 | 5.5 out of 10 | Glass filled reinforced plastics and composites |
Metallurgical Optimization for Zero Micro Chipping
Standard wear resistant crusher blades often suffer premature cutting edge failure due to coarse carbide clusters and unrefined internal stress. By utilizing double-refined D2 tool steel blades and high chromium formulations, Shark Cutting ensures uniform micro-carbide distribution throughout the steel body. This balanced grain structure absorbs intense localized shear loads without micro-fracturing.
Combining tailored material selection with systematic crusher blade maintenance guarantees precise rotor-to-stationary blade clearance, minimizing heat buildup during continuous plastic recycling cycles.
Advanced Thermal Processing Protocol
Peak surface hardness alone cannot prevent tool degradation during heavy chopping. Our proprietary heat treatment process eliminates internal residual stress while harmonizing edge sharpness and core impact toughness.

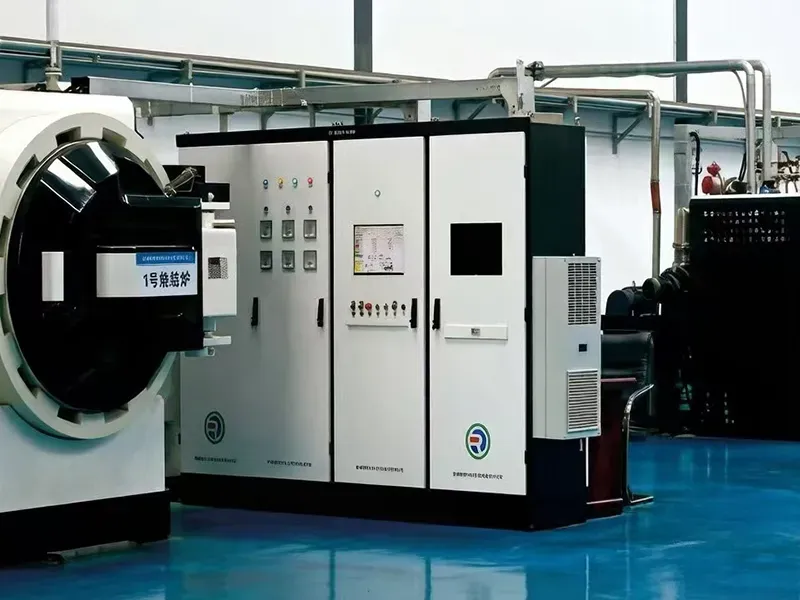

Vacuum Atmosphere Hardening
Raw knife blanks are heated in atmosphere-controlled vacuum furnaces to precise austenitizing temperatures. This prevents surface oxidation and decarburization while preserving dimensional symmetry across complex mounting geometries.
Deep Cryogenic Sub Zero Treatment
Blades undergo liquid nitrogen cryogenic soaking at minus 196 degrees Celsius (minus 320 degrees Fahrenheit). This thermal conversion turns residual austenite into fine martensite, elevating structural wear life by up to 35 percent.
Triple Precision Tempering Cycles
Multiple stress-relieving tempering cycles eliminate internal mechanical stress induced during rapid quenching, balancing high surface hardness with the elasticity needed to resist sudden impurity shock.

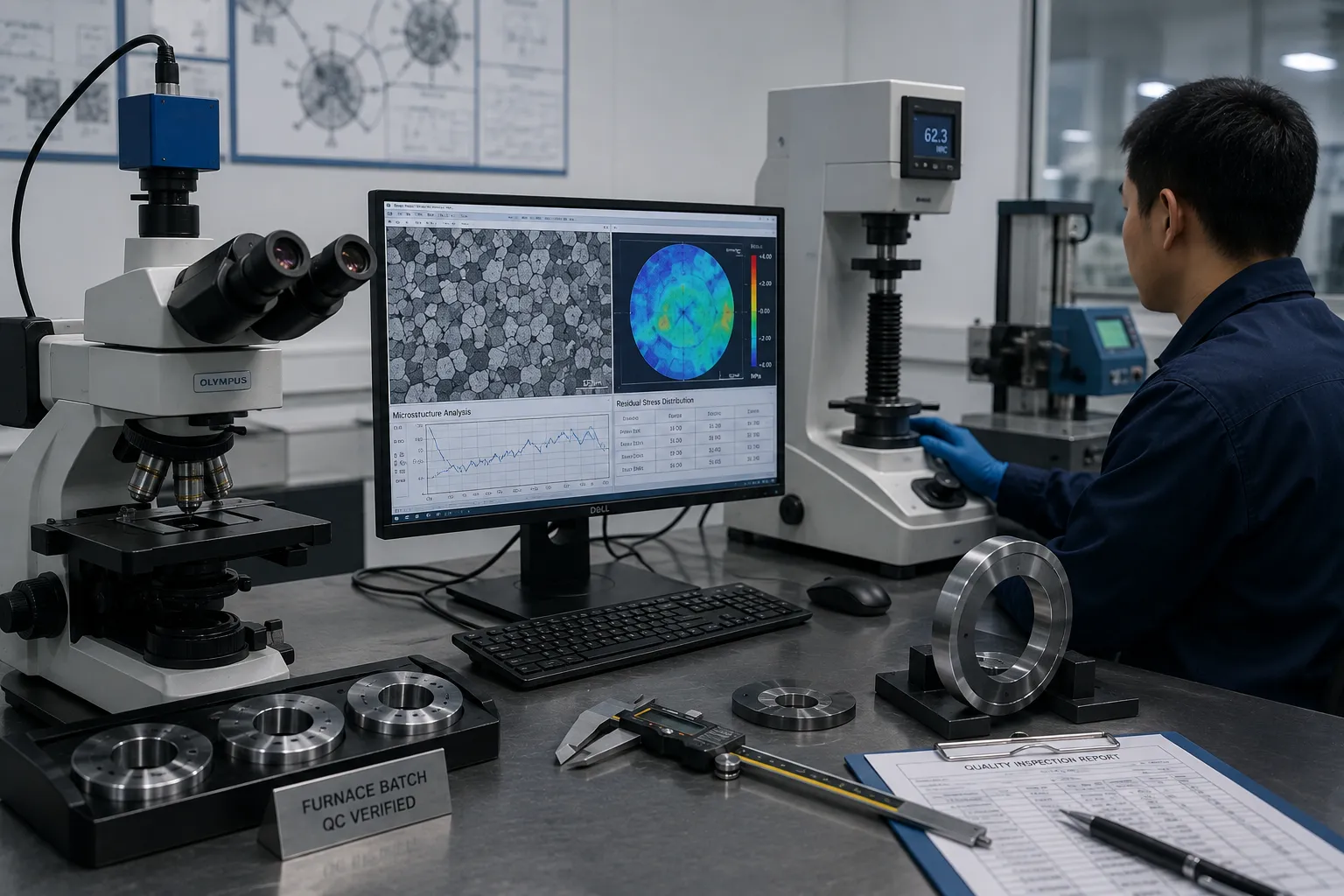

Microstructure and stress distribution verified on every furnace batch prior to precision CNC edge grinding.

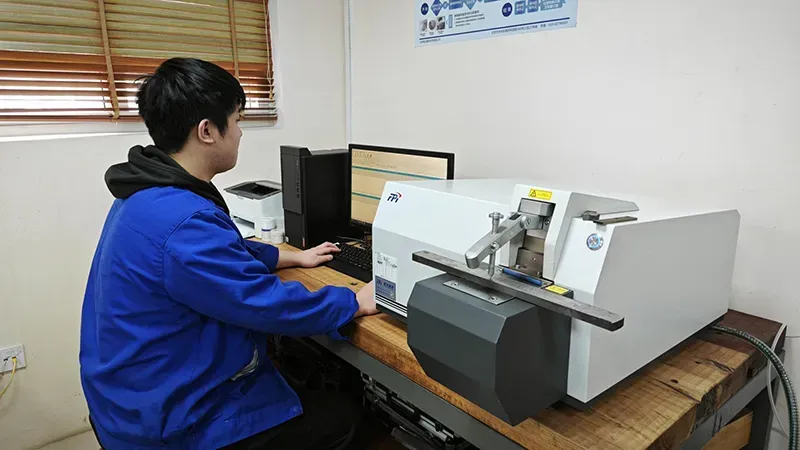

Rigorous Quality Inspection Standard
- Three Coordinate Measurement CMM: Verifies dimensional tolerances within plus or minus 0.01mm for precise bolt hole matching.
- Ultrasonic Flaw Detection: Inspects full internal steel body to guarantee zero internal voids or quenching cracks.
- Metallographic Microstructure Inspection: Verifies fine grain boundaries and carbidic dispersion prior to release.
Engineered Solutions for Demanding Recycling Operations
Strict raw material inspection and advanced deep cryogenic heat treatment technology are core cornerstones ensuring every blade leaving our factory meets high quality standards. Rely on Shark Cutting to extend service life and minimize maintenance costs across your recycling production line.
Crusher Blade Manufacturing & Procurement Technical Guide
Comprehensive technical guidance from Sharkcutting to help industrial recyclers, granulator operators, and procurement managers select high-performance materials, extend recycling blades lifespan, and minimize downtime through proper crusher blade maintenance.
01 Q1: How do I select the right crusher blade material based on my recycling material?
Selecting the ideal tool steel formulation is the single most critical decision to prevent catastrophic edge breakdown and maximize operational runtime. As a premier industrial crusher blade manufacturer, Sharkcutting engineers high-grade metallurgies customized for specific recycling feedstocks.
When processing soft, flexible polymers like thin films or woven sacks, high abrasion resistance is vital. Conversely, when pulverizing dense injection purge blocks or thick-wall pipes, impact toughness prevents cracking under extreme kinetic loads.
| Recycling Feedstock | Recommended Alloy | Hardness | Primary Mechanical Benefit |
|---|---|---|---|
| PET Flakes, PE Film, PP Bags | D2 Tool Steel Blades | 60-62 HRC | Extreme sliding abrasion resistance and edge holding |
| Thick-Wall Pipes, Heavy Purge | H13 Shock-Resistant Steel | 52-56 HRC | Maximum impact toughness to prevent shock cracking |
| Rigid ABS, PC, PVC Profiles | High Chromium Steel Blades | 58-60 HRC | Balanced wear resistance and shock resistance |
| Glass-Reinforced Plastics | Tungsten Carbide Tipped | 64-68 HRC | Superior knife life under high abrasive friction |
Our metallurgical specialists perform microstructural analysis on all incoming raw stock to verify carbide distribution, ensuring that every knife set meets international heavy duty crusher blades standards.
02 Q2: What causes blade chipping, and how can proper installation adjustment prevent it?
Micro-chipping and catastrophic edge fracture occur primarily when thermal stress, uneven mounting bolt tension, or excessive blade gap clearance creates uneven shear loading. Effective crusher blade maintenance avoids costly production shutdowns by following strict mechanical alignment protocols.
Maintain a tight, uniform gap between dynamic rotor knives and stationary bed blades (typically 0.12mm to 0.20mm). Excessive clearance causes material tearing and friction heating, whereas inadequate clearance risks thermal expansion collision.
Uneven tightening causes blade seat distortion under heavy loads. Always use a calibrated torque wrench in a cross-star sequence according to equipment manufacturer torque specifications.
- Cryogenic Stress Relief: Sharkcutting wear resistant crusher blades undergo -196°C deep sub-zero cryogenic tempering to eliminate residual internal stress, giving the core maximum resilience against high-impact shock loads.
- Tramp Material Inspection: Install magnetic separators or optical sorters upstream to eliminate steel bolts, metal shavings, or rocks before entering the cutting chamber.
- Preventive Sharpening Cycles: Regrind plastic recycling blades before severe dulling occurs. Operating dull knives doubles the mechanical load on the rotor, accelerating bearing wear and knife edge chipping. For heavy primary size reduction equipment, we also manufacture robust shredder-blades designed for continuous severe-duty operation.
03 Q3: Do you support custom OEM reproduction based on old drawings or worn samples?
Yes, Sharkcutting provides complete original equipment manufacturer replacement services and custom knife engineering. Whether you operate current-generation granulators or legacy machinery with lost original blueprints, our production facility precisely recreates replacement components, including high-precision granulator-blades for clean, uniform regrind production.
Send us original CAD files or physically worn knife samples. Our engineering team utilizes Coordinate Measuring Machines (CMM) and optical spectrographs to measure hole centers, bevel angles, countersink depths, and exact chemical compositions.
Custom options include dual-angle cutting edges, specialized carbide coatings, custom mounting hole geometries, and tailored edge hardness configurations designed to resolve unique wear challenges in thick wall pipe crusher knives and plastic crusher knives applications.
04 Q4: What are the delivery lead times, minimum order quantities (MOQ), and shipping terms?
We streamline manufacturing schedules to ensure high-speed turnarounds for critical replacement knife sets, minimizing plant downtime across North American and international recycling facilities.
We provide express air transport for urgent emergency shutdowns and consolidated ocean freight options for scheduled maintenance replenishment programs. Every shipment includes comprehensive inspection certificates and dimensional test reports for custom blade specs.
Every Sharkcutting blade undergoes strict ultrasonic flaw detection, hardness verification, and CMM dimension validation prior to dispatch.
- ✓ Sub-zero cryogenic heat treatment eliminates internal mechanical stress
- ✓ Precision CNC edge grinding within strict tolerances
- ✓ D2 tool steel blades and tungsten carbide options
- ✓ Universal fitment across global recycling granulator brands
Need Longer Blade Life for Your Crushing or Recycling Line?
Send us your blade drawings, equipment model, existing knife sample, or processing material. Sharkcutting engineers will evaluate your cutting conditions and recommend the appropriate steel grade, hardness, bevel geometry, and OEM dimensions for your application.
Custom Crusher Blade Engineering
Send Your Blade Requirements for Technical Review
Request Custom QuoteCAD drawings, machine models, existing blade samples and custom dimensions are accepted.
