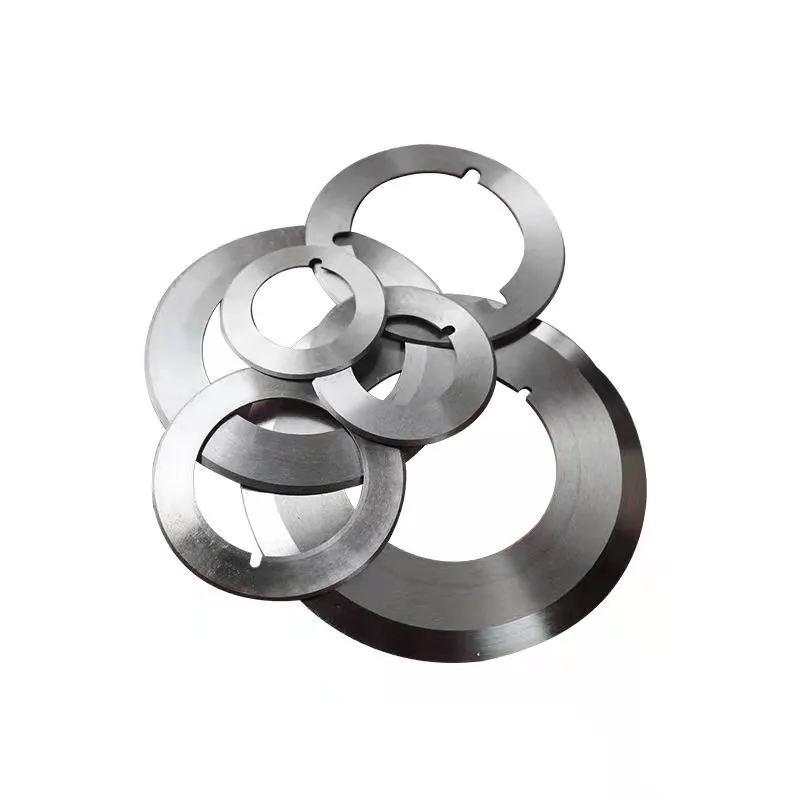

Why Leading Converters Rely on Our Rotary Slitting Knives
At Sharkcutting, every rotary slitting knife is engineered specifically for high-speed, continuous production lines where blade chatter, edge burrs, and axial runout threaten web quality and overall line yield. By combining state-of-the-art CNC grinding technology with high-grade tool steel and carbide metallurgy, we supply industrial slitter blades that maximize uptime, lower total cost per cut, and deliver flawless edge quality across demanding flexible packaging, paper, film, and foil applications.
Continuous High-Speed Cutting Stability
Dynamic balance testing and micro-finish side grinding eliminate high-RPM blade chatter and lateral deflection. By stabilizing the knife at full line velocity, our designs preserve clean slitting lines and ensure superior high-speed slitting performance during continuous web processing.
Premium Alloy and Carbide Formulations
Manufactured from high-vanadium tool steels (D2, M2, SKD11) and sub-micron tungsten carbide grades, our wear-resistant slitter blades extend operational lifespan 3x to 5x compared to standard tool steels, dramatically reducing blade changeover frequency.
Micron-Level Surface Grinding
Mirror-finish edge polishing to Ra < 0.1 µm prevents web dust formation, edge stretch, and material buildup. This precision is vital when slitting sensitive films with high-precision circular slitter knives, adhesive tapes, coated laminates, and barrier substrates where pristine edge quality drives converting yields.
Strict Dimensional and Parallelism Tolerances
Holding axial runout and bore tolerances to strict micrometer limits protects cutter arbors and reduces load variance on drive motors. These exact precision grinding tolerances safeguard machinery health, optimize tool wear, and maximize return on machinery investment.
Engineered for Demanding Continuous Production Lines
Unplanned machine downtime and blade deflection remain two of the most costly bottlenecks in modern web converting operations. Sharkcutting resolves both challenges through proprietary heat treatment protocols, sub-micron CNC grinding, and deep material science expertise cultivated across thousands of custom knife projects.
Every rotary slitting knife manufactured in our facility undergoes rigorous optical profile verification, hardness validation, and dynamic balance testing prior to packaging. The result is a cutting tool that mounts true, runs vibration-free, and delivers dependable shear slitting knives performance and crush slitting quality from initial startup through multi-shift runs measured in millions of linear meters.
- ±0.002 mm inner diameter precision grinding tolerances for zero-play arbor alignment
- Up to 5x extended wear life compared to standard carbon tool steel replacement blades
- 100% pre-shipment optical inspection ensuring defect-free cutting edges
- Custom OEM knife configurations engineered from technical drawings or physical samples
Rotary Knife Specifications & Precision Grinding Tolerances
Selecting the proper tool steel grade and precision grinding setup is essential for maintaining uninterrupted continuous production slitting operations. Shark Cutting engineers high-performance rotary slitting knives designed to deliver maximum wear resistance, micron-level edge stability, and extended operational cycles across continuous web converting lines, film slitting systems, and high-speed packaging machinery.
Premium Metallurgy Options for Converting Lines
Engineered specifically for demanding continuous web converting equipment, our wear-resistant circular slitter knives utilize refined steel and carbide formulations to optimize high-speed slitting performance, eliminate blade chatter, and reduce dust generation.
High-Carbon High-Chromium Tool Steels
D2 / SKD11 / 1.2379Offers an exceptional balance of mechanical toughness and wear resistance for general paper, film, and flexible packaging slitting. Formulated to withstand heavy continuous operational cycles with high resistance to shock loading and edge micro-chipping.
High-Speed Tool Steels (HSS)
M2 / M35 / ASP Powder MetallurgyFeatures superior red hardness and edge retention under intense frictional heat during continuous production slitting. Advanced powder metal options deliver micro-refined grain structures for unmatched high-speed slitting performance on abrasive web materials.
Solid Tungsten Carbide Grades
Sub-Micron Tungsten CarbideDelivers extreme surface hardness and exceptional abrasion resistance for uninterrupted slitting operations. Designed to process highly abrasive substrates while extending re-sharpening intervals up to five times compared to conventional tool steels.

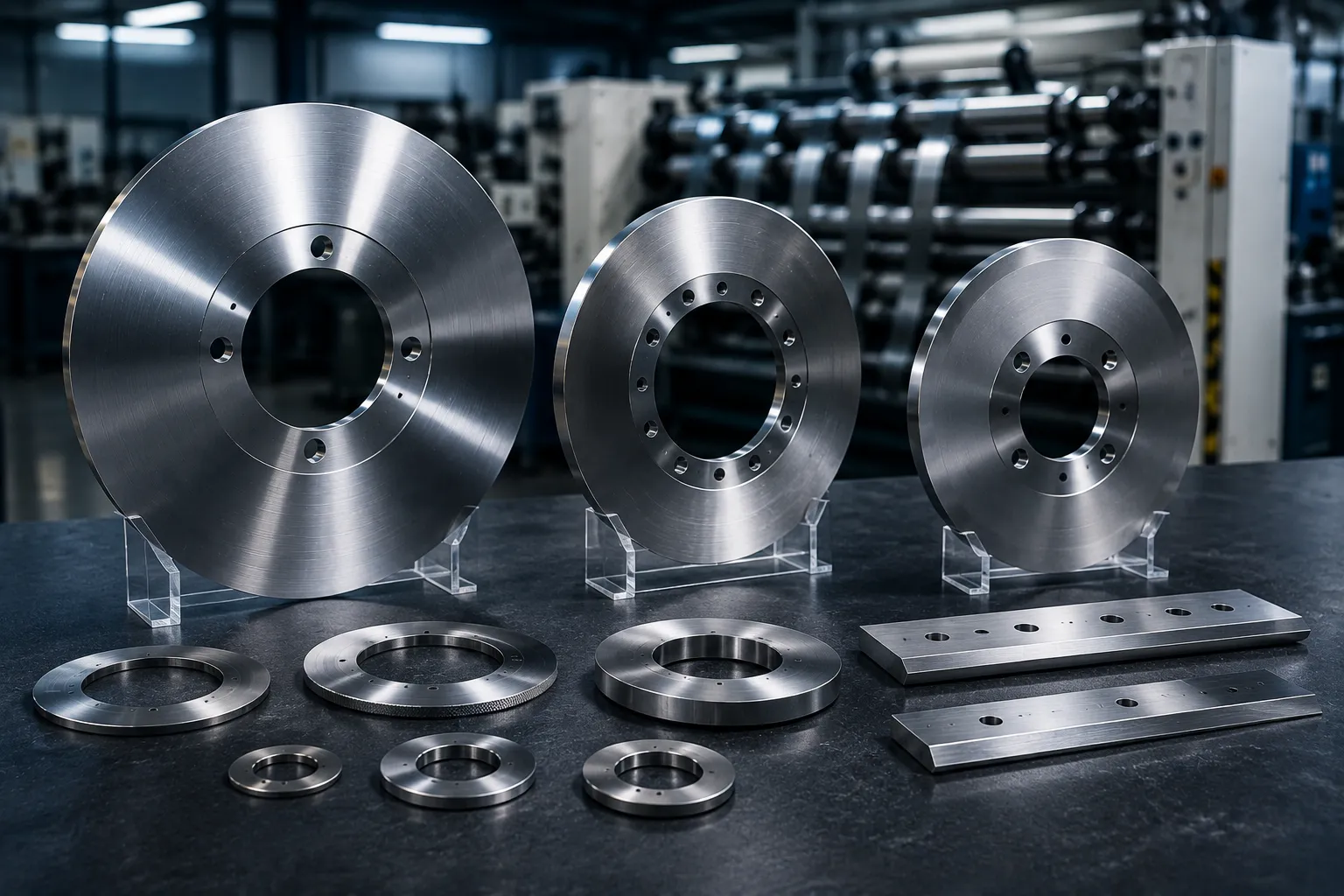

Rotary Knife Specifications Matrix
Every rotary slitting blade manufactured by Shark Cutting adheres to strict dimensional tolerances and mirror-finish grinding standards to ensure precise arbor alignment, eliminate axial runout, and deliver clean, burr-free cut edges.
| Specification Parameter | Manufacturing Tolerance Range |
|---|---|
| Outer Diameter (OD) Range | 20 mm to 500 mm (0.78 in to 19.68 in) |
| Inner Diameter (ID) Bore Tolerance | Custom machined to arbor specs with ±0.002 mm precision grinding tolerances |
| Blade Thickness Tolerances | Down to ±0.001 mm for high-precision gang-slitting configurations |
| Surface Finish Quality | Ra 0.05 µm to 0.2 µm mirror-polished cutting bevels |
| Hardness Standard | 58–65 HRC (Tool Steels) / 88–93 HRA (Carbide Grades) |
| Parallelism and Flank Runout | Maintained within 0.002 mm to prevent high-RPM dynamic chatter |
100% pre-shipment optical profile testing verifies arbor bore concentricity and side flank parallelism.
Custom Engineering and OEM Manufacturing Capabilities
We maintain an extensive inventory of quick-ship standard rotary blade sizes and high-durability shear slitting knives alongside complete OEM custom manufacturing capabilities tailored to your specific converting machinery, arbor dimensions, and material substrate demands.
High-Precision Converting Line Knives for Global Industrial Applications
Continuous high-speed web converting demands extreme grinding precision, consistent shear dynamics, and exceptional wear resistance. Shark Cutting manufactures high-performance industrial machine knives and slitting knives engineered specifically for demanding continuous web processing lines. By matching substrate physical properties with specialized bevel geometries and high-grade alloy metallurgy, our converting line knives eliminate edge defects, prevent blade runout, and maximize throughput across global packaging and film slitting operations.
Flexible Packaging and Film Slitting
Converting thin polymer films requires ultra-precise edge geometry and minimal side friction. Shark Cutting provides specialized bevel geometries for converting line knives handling BOPP, PET, PE, PVC, and complex multi-layer barrier films.
This targeted packaging and film slitting solution eliminates tensile edge deformation, micro-fracturing, dust contamination, and film stretch during high-speed winding. Mirror-finish edge polishing prevents heat generation and plastic buildup along continuous slitting lines.
- ✓ Key Materials: BOPP, CPP, PET, LDPE, HDPE, PVC, barrier laminates.
- ✓ Primary Advantage: Prevents edge stretch, particulate dust, and telescope roll defects.
- ✓ Tool Metallurgy: Sub-micron solid tungsten carbide and M35 high-speed steel.
Paper and Board Converting
Abrasive paper fibers and heavy board calipers quickly dull standard slitter edges. Our high-speed shear slitting knives and crush rotary slitters are engineered for continuous paper mills, corrugated box production, and high-volume tissue converting machinery.
Utilizing high-vanadium tool steels and powder metals, Shark Cutting rotary slitting knives maintain sharp shearing points under high side loads. This minimizes blade wear, prevents paper dust accumulation, and ensures clean edge separation across long production runs.
- ✓ Key Materials: Heavy kraft paper, linerboard, corrugated medium, tissue paper.
- ✓ Primary Advantage: Reduces paper slitting dust and eliminates crushed edge profiles.
- ✓ Tool Metallurgy: D2 cold work steel and ASP powder metal grades.
Nonwovens and Medical Substrates
Synthetic web fibers require specialized keen-edged knives to cleanly part filaments without pulling. Shark Cutting produces ultra-sharp, polished edge profiles for spunbond, meltblown, and hygienic nonwovens.
Our rotary slitting blades prevent fiber fraying and thermal edge sealing issues. Medical fabrics, surgical wraps, and personal care webs maintain soft edge touch and strict cleanroom quality standards under continuous high-velocity cutting.
- ✓ Key Materials: Spunbond, meltblown, SMS composites, medical gauze, filter media.
- ✓ Primary Advantage: Prevents edge bead melting and loose filament shedding.
- ✓ Tool Metallurgy: M2 high-speed steel with mirror-polished edge finish.
Metal Foil, Rubber and Technical Laminates
Slitting battery separator films, thin aluminum foil, copper collector sheets, and rubber sheeting demands high impact resistance combined with extreme edge hardness. Heavy-duty carbide and powder-metal rotary knives withstand heavy cutting resistance.
Engineered with high vanadium tool steel and micro-grain tungsten carbide, these blades resist edge chipping and galvanic wear. Precise axial tolerances deliver burr-free slitting on energy storage components and dense rubber materials.
- ✓ Key Materials: Battery separator film, aluminum foil, copper foil, rubber sheets.
- ✓ Primary Advantage: Delivers burr-free metallic edges and superior impact toughness.
- ✓ Tool Metallurgy: Sub-micron tungsten carbide HRA 89 to 93 grade.
Substrate Slitting Capability Matrix
Achieving optimum rotary cut quality relies on exact matching of knife geometry, side pressure adjustment, and machine arbor alignment. Shark Cutting manufactures replacement blades and OEM converting line knives designed for seamless integration with major web slitting systems worldwide.
Industry Substrate Selection Guide
Match your specific web material with our recommended tool steel grades, bevel profiles, and slitting performance characteristics.
| Converting Industry | Primary Substrates | Recommended Material | Slitting Challenge | Cutting Result |
|---|---|---|---|---|
| Flexible Packaging | BOPP, PET, PE, PVC, Laminates | Tungsten Carbide / M2 HSS | Edge stretch and dust generation | Zero-fray clean edge |
| Paper Converting | Kraft, Corrugated, Tissue | D2 Tool Steel / ASP Powder Metal | Rapid edge dulling from fibers | Up to 5x extended life span |
| Nonwovens & Medical | Spunbond, Meltblown, SMS | M2 Steel Mirror Polished | Fiber fraying and thermal seal | Smooth burr-free slit |
| Technical Laminates | Battery Foil, Copper, Rubber | Sub-Micron Tungsten Carbide | Heavy wear and edge chipping | Micro-precision cut |
Key Technical Advantages for Web Converting Lines
Engineered for continuous production lines, Shark Cutting rotary slitting knives feature state-of-the-art CNC precision grinding, tight tolerance control, and custom surface treatments.
Custom Bevel Angle Geometries
Tailored single and double bevel edge profiles engineered to match specific web speeds, material thickness, and tension requirements without edge distortion.
Mirror Surface Polish Standards
Side polishing down to micro-roughness below 0.1 µm prevents material buildup, adhesive drag, and friction heat during rapid continuous slitting runs.
Non-Stick Surface Coatings
Optional PTFE, Titanium Nitride, and Diamond-Like Carbon coatings prevent glue adhesion and web dragging on sticky converted substrates.
Request Custom Application Support for Your Slitting Line
Consult with our technical sales team to specify exact metallurgy, edge bevels, and runout tolerances for your web converting machinery.
Cutting Mechanism Comparison: Rotary Slitting vs. Alternative Methods
Selecting the optimal web converting cutting mechanism directly dictates line uptime, edge accuracy, dust generation, and overall tooling lifecycle costs. While razor-slitting-knives and crush scoring serve basic or low-speed flexible setups, high-precision circular slitter knives manufactured by Sharkcutting provide the ultimate balance of high-speed slitting performance, outstanding rotary cut quality, and advanced blade wear optimization across demanding continuous production environments.
Comprehensive Performance Matrix
Direct engineering comparison of rotary shear slitting against industrial razor and crush scoring technologies across core converting parameters.
| Performance Parameter | Sharkcutting Rotary Shear | Industrial Razor Slitting | Crush & Score Slitting |
|---|---|---|---|
| Substrate Suitability | High-caliper polymer films, paperboard, aluminum & copper battery foils, multi-layer laminates, and abrasive nonwovens. | Strictly limited to thin, non-abrasive single-layer polymer films (BOPP, PET) and soft flexible gauges. | Thick paperboard, coarse nonwovens, industrial textiles, and basic unbacked web stocks. |
| Line Speed Capability | Delivers high-speed slitting performance exceeding 800 m/min with zero thermal drag or web necking. | Restricted to low line speeds; friction heat rapidly softens blade tips, causing notch failures and web snaps. | Moderate line speeds; high radial continuous pressure leads to anvil bounce and edge chatter at high velocity. |
| Edge Quality and Cleanliness | Delivers superior rotary cut quality with mirror-smooth, burr-free edges and virtually zero particulate or dust generation. | Prone to web stretching, edge tearing, and micro-burrs when processing multi-layer or composite webs. | Generates heavy dust, fiber displacement, and compressed, fractured material edges. |
| Blade Wear and Longevity | Maximized blade wear optimization; wear-resistant slitter blades withstand 5 to 10 precision CNC regrinding cycles. | High consumable consumption; disposable razor blades require frequent manual line stops and re-threading. | Moderate lifespan; heavy compression contact causes rapid edge radiusing on hardened anvil sleeves. |
| Setup and Alignment Control | Requires calibrated axial clearance, overlap, and side pressure setup for continuous shear geometry. | Fast initial positioning, but highly vulnerable to web flutter, entry angle shifts, and thermal deformation. | Quick pneumatic force calibration, but sensitive to density fluctuations across the moving web. |
Substrate Suitability and Caliper Capacity
Rotary slitting knives excel across an expansive range of substrate thicknesses, tensile strengths, and abrasive densities. Unlike razor slitting—which quickly breaks down when handling thick or abrasive multi-layer substrates—rotary shear mechanisms deliver clean parting action on rigid polymer films, paperboard, metallic battery foils, barrier laminates, and tough technical nonwovens.
- • Heavy-Gauge Polymers & Laminates: BOPP, PET, PE, PVC, and co-extruded barrier structures sliced cleanly without edge stretch.
- • Conductive Battery Foils: Precision slitting of aluminum and copper collector foils with zero burr formation or micro-flaking.
High-Speed Line Stability and Thermal Resilience
Continuous converting lines running at web velocities exceeding 800 m/min require knife stability that stationary or dragging blades cannot sustain. Frictional heat on stationary razor edges causes localized thermal softening, inducing blade notches and catastrophic web snapping. Sharkcutting rotary slitter blades rotate synchronously with the moving web, dissipating friction heat evenly across the entire outer circumference.
- • Precision Dynamic Balancing: Prevents high-RPM vibration, axial runout, and arbor wear during continuous slitting.
- • Thermal Dissipation Geometry: Synchronized rotation prevents localized heat buildup and premature edge breakdown.
Particulate Elimination and Clean Edge Quality
In medical nonwovens, cleanroom packaging, and battery separator manufacturing, airborne dust and ragged slit edges compromise strict product compliance. Crush slitting relies on compressive fracturing, which spews particulate debris and fractures material edges. Calibrated rotary shear action creates a crisp, scissor-like cut that yields pristine, mirror-finish edges and zero fiber dust.
- • Ultra-Fine Bevel Polishing: Polished bevel angles (Ra < 0.1 µm) eliminate web friction and polymer adhesive pickup.
- • Dust-Free Slitting Precision: Clean shear parting eliminates loose particulate contamination on converting line knives.
Blade Wear Optimization and Total Cost of Ownership
Although razor blades carry low initial unit costs, constant downtime for blade replacement and web re-threading drives total operational costs skyward. Sharkcutting wear-resistant slitter blades—manufactured from premium D2, M2 high-speed steel, or sub-micron tungsten carbide—offer unmatched blade wear optimization, drastically extending continuous production uptime.
- • Multiple CNC Sharpening Cycles: Precision blade geometry engineered to support 5 to 10 CNC regrinding services.
- • Sub-Micron Grain Hardness: Advanced alloy hardness reaching 88–93 HRA maximizes edge retention under continuous loads.
Engineering Selection Guidance for Web Converting Lines
Selecting between dual rotary shear knife sets and single rotary score blades depends on your web substrate thickness, machine arbor setup, and required changeover speed.
Dual Rotary Shear Knife Sets
Engineered with intermeshing male upper knives and female lower bottom rings mounted on dual precision arbors. Recommended for heavy-gauge polymers, aluminum battery foils, paper converting, and multi-layer laminated structures where zero edge fraying and extreme dimensional slit accuracy are paramount using our precision shear-slitting-knives.
Best Suited For
High-speed paper mills, flexible barrier packaging, battery collector foil slitting, and technical nonwovens.
Single Rotary Score Blade Systems
Designed for pneumatic score assemblies slitting directly against a hardened anvil sleeve. Ideal when web converting operations demand fast width adjustments, frequent short production runs, and flexible web routing without long setup downtime.
Best Suited For
Short-run flexible packaging, pressure-sensitive label converting, and nonwoven slitting requiring rapid width changes.
The Sharkcutting Engineering Advantage for Continuous Lines
At Sharkcutting, we solve critical pain points surrounding production line downtime, arbor runout errors, and rapid edge wear. Utilizing state-of-the-art CNC grinding technology and 100% pre-shipment optical inspection, our customized rotary slitting knives maintain tight runout tolerances down to ±0.002 mm, protecting cutter arbors and maximizing equipment profitability.
±0.002 mm
Precision Grinding Tolerance
Up to 5x
Extended Sharpening Lifecycle

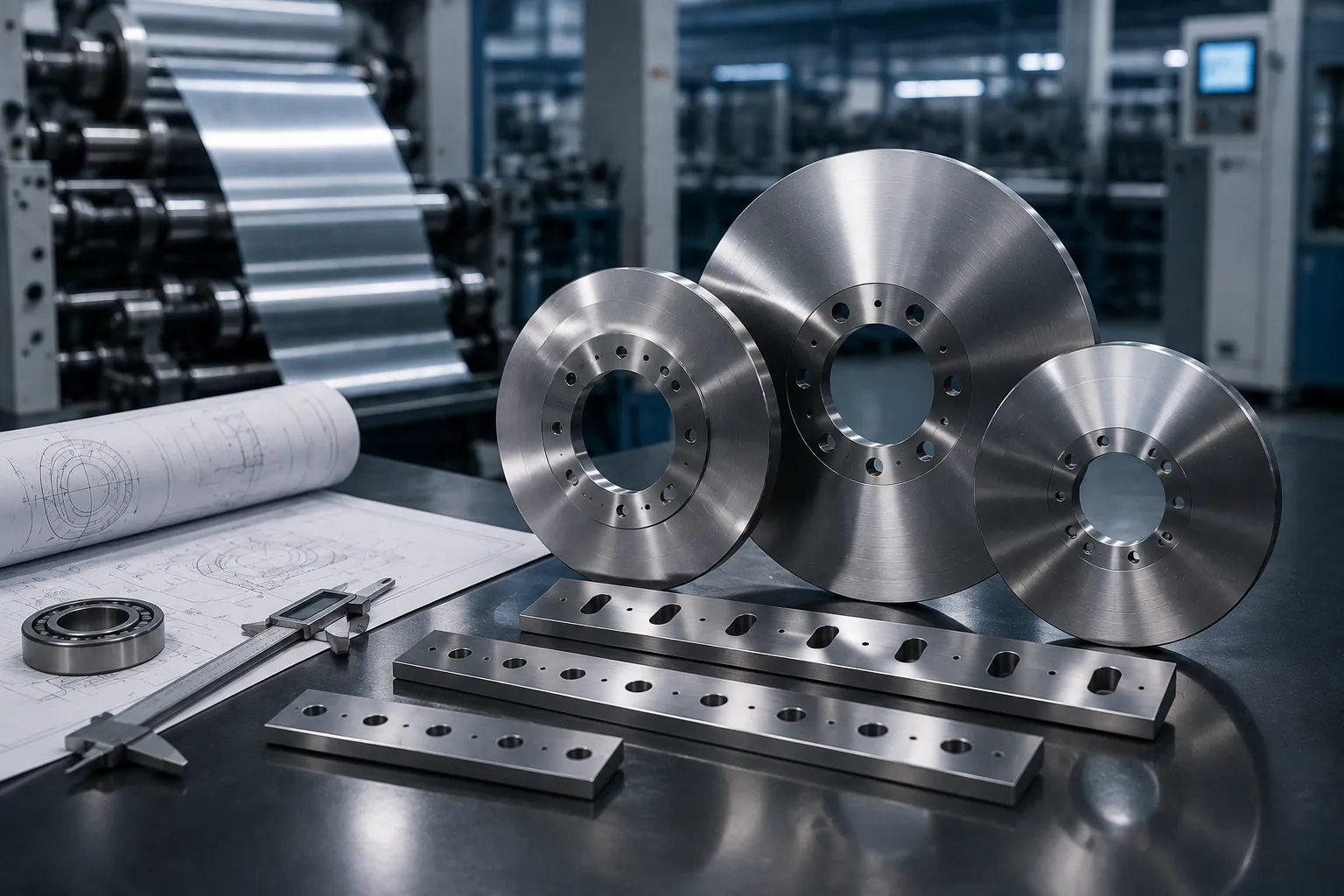

Custom Rotary Blades & OEM Industrial Knives Manufacturing
From initial drawing review to ultra-precision grinding, Sharkcutting engineers high-performance custom rotary blades tailored to your specific converting machinery and production requirements. In addition to converting solutions, we manufacture heavy-duty shear blades for rigorous industrial cutting applications.
1. Consultation & CAD Review
We analyze your slitting process, perform sample wear inspections, and review your OEM CAD or PDF technical specs for optimal blade fit and performance.
- Drawing & Specification Review
- Sample Wear Pattern Analysis
2. Metallurgy & Geometry Selection
Our engineers select high-grade tool steels or tungsten carbide, formulating custom bevel angles and heat treatment specs for maximum tool longevity.
- Tool Steel & Carbide Grades
- Tailored Bevel Geometry
3. CNC Machining & Precision Grinding
We utilize multi-axis CNC turning, vacuum hardening, dynamic balancing, and ultra-precision surface grinding for tight tolerance control.
- Dynamic Balancing
- Ultra-Precision Grinding
4. Quality Verification & Shipping
Every blade passes optical profile measurement and axial runout tests before receiving protective anti-corrosion coating and secure packaging.
- Optical Profile Verification
- Protective Coating & Packaging
Need Custom Rotary Blades Engineered for Your Machinery?
Our engineering team evaluates your drawing specifications and material requirements to manufacture high-grade OEM industrial knives built for continuous speed and durability.
Frequently Asked Questions About Rotary Slitting Knives
Comprehensive technical guidance on rotary slitting knife optimization, maintenance procedures, OEM customization, and blade longevity. Sharkcutting provides high-precision tool engineering through our diverse catalog of industrial products to help web converting operators eliminate production line downtime and maintain zero-defect edge quality across high-speed continuous runs.
01 Extending Knife Service Life on Continuous Lines
Proper axial overlap setup, precise lateral pressure adjustment during shear slitting, scheduled micro-lubrication, and zero-runout arbor alignment are essential for maximizing cutting performance. Sharkcutting rotary slitting knives are manufactured from high-purity alloy steels with refined carbide grain structures, specifically developed to withstand high-speed continuous friction and thermal stresses when integrated into a structured rotary knife maintenance program.
Excessive lateral pressure or incorrect overlap engagement creates localized heat buildup and accelerates edge wear, leading to web burrs and premature tool fatigue. Establishing standardized setup procedures and routine inspection protocols ensures consistent shear action, extends blade life between re-grinds, and protects both upper and lower cutters on high-speed slitting lines.
Key Maintenance Practices
- Calibrated lateral overlap and axial depth adjustment
- Precision arbor runout (TIR) verification under ±0.002 mm
- Continuous micro-lubrication for reduced friction heat
- Controlled spring or pneumatic side-load torque application
02 OEM Replacement Knife Manufacturing Capabilities
Yes. Sharkcutting engineered industrial knives, including specialized circular slitter knives, can be customized or reverse-engineered directly from worn sample blades, CAD drawings, or original machine blueprints. We guarantee 100% dimensional interchangeability with major global web converting and slitting equipment brands, including Kampf, Atlas, Dusenbery, Titan, and Parkinson.
Utilizing advanced CNC optical profile grinding and coordinate measuring machines (CMM), we replicate exact arbor bore clearances, keyway positioning, bevel angle geometries, and lateral runout tolerances. This guarantees plug-and-play installation without requiring mechanical modifications to existing cutter shafts or mounting hubs.
Manufacturing Standards
- Precision inner bore tolerances controlled to ±0.002 mm
- Exact metallurgical matching via optical emission spectrometry
- Dynamic balancing for ultra-high-speed converting lines
- Direct CAD blueprint translation and rapid custom fabrication
03 Blade Sharpening Cycles and Regrinding Allowance
Most high-grade tool steel and tungsten carbide rotary slitting knives can undergo multiple re-grinding cycles depending on the initial outer diameter allowance and edge chipping severity. On average, a premium Sharkcutting rotary blade delivers a 5 to 10 blade sharpening cycle lifecycle before reaching minimum operational outer diameter limits.
Manufactured with vacuum-hardened tool steels (such as D2, M2, and M35) or sub-micron tungsten carbide grades, our cutting tools retain core structural toughness across repeated grinding passes. Our specialized micro-finish re-grinding service removes minimal material per pass while fully restoring the original bevel profile and cutting edge sharpness.
Regrinding Capabilities
- 5 to 10 predictable blade sharpening cycles per tool
- Minimal material removal per re-grind pass (0.02–0.05 mm)
- Precision bevel geometry restoration and dynamic re-balancing
- 100% optical edge inspection following every regrind
04 Surface Coatings for Adhesive and Sticky Materials
Sharkcutting supplies high-performance surface coatings—including Polytetrafluoroethylene (PTFE), Titanium Nitride (TiN), Chromium Nitride (CrN), and Diamond-Like Carbon (DLC)—specifically engineered to prevent adhesive pickup, lower friction heat, and eliminate material dragging when slitting pressure-sensitive adhesive (PSA) tapes, flexible packaging films, and sticky laminates.
Adhesive buildup on blade bevels causes friction drag, edge fraying, and tension fluctuations across the continuous web line. Selecting the optimal anti-stick or wear-resistant surface treatment maintains clean blade edges, reduces downtime for manual blade wiping, and extends interval cycles between scheduled knife cleanings.
Surface Treatments
- PTFE Coatings: Delivers exceptional non-stick release properties to prevent soft adhesive transfer on flexible packaging films.
- Titanium Nitride (TiN): Enhances surface hardness up to 2,300 HV while reducing friction and thermal degradation during high-speed cuts.
- DLC Treatments: Provides an ultra-low friction coefficient with high abrasion resistance, ideal for technical laminates and battery separators.

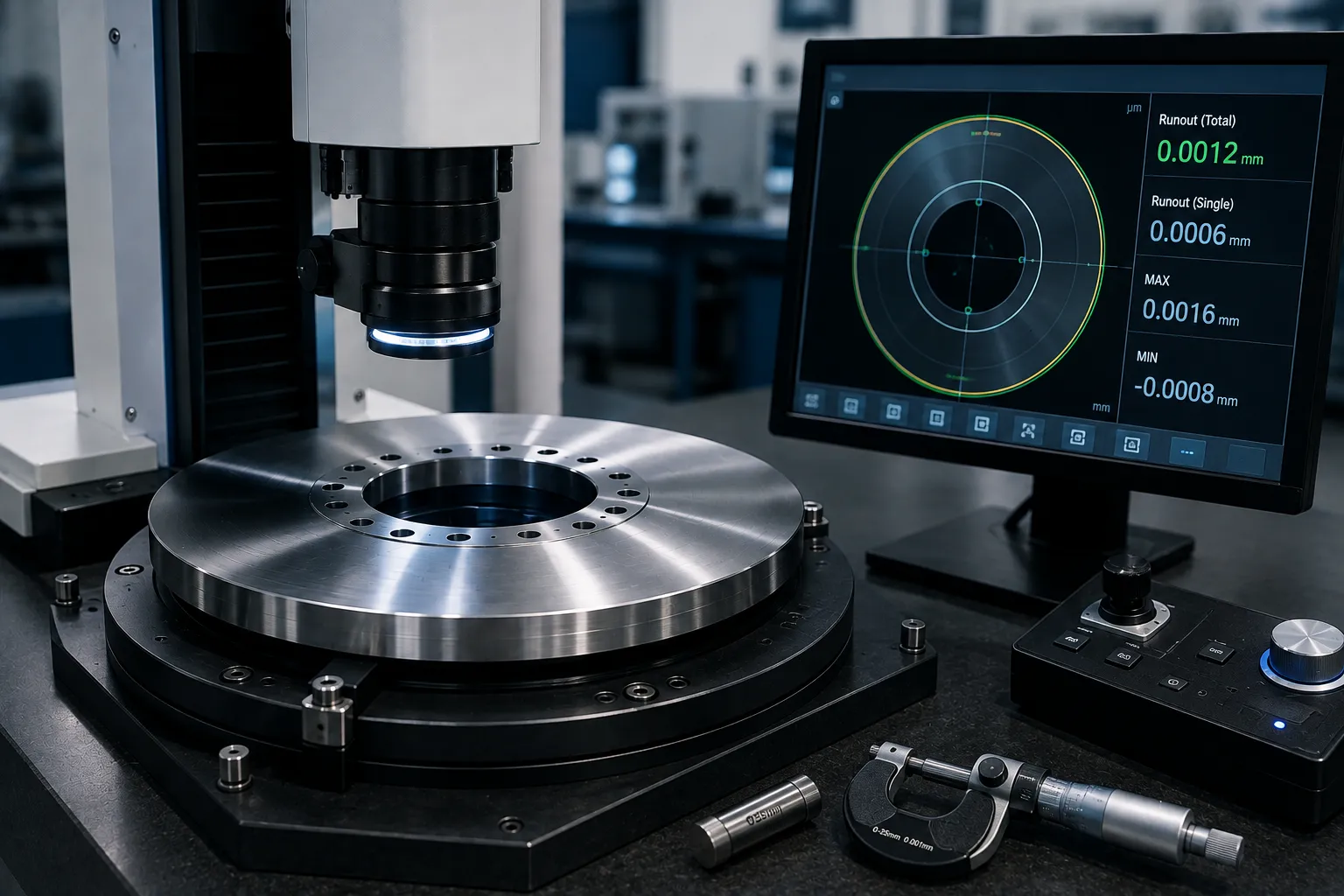

Technical Diagnostic Support for Slitting Setups
Have specific technical questions about your slitting machine setup? Contact our engineering team directly for custom diagnostic support, arbor clearance evaluation, and targeted material recommendations.
Sharkcutting optical profile inspection ensuring runout accuracy under 0.002 mm
Ready to Upgrade Your Continuous Slitting Line Efficiency?
Partner with a trusted industrial machine knives supplier. Send us your specifications, OEM part numbers, or CAD drawings, and our engineers will evaluate your application to quote rotary blades and specialized slitting knives within 24 hours.
Rapid 24-hour response on technical inquiries and quote requests.
Custom blade engineering tailored for OEM converting lines and high-performance circular slitter knives.
ISO-certified manufacturing ensuring micro-inch tolerances and long wear life.
Request Your Custom Quote
Submit your dimensions or technical requirements below to receive pricing and engineering guidance.
