High-Precision Film Slitting Blades & Low-Friction Cutting Solutions
Engineered for BOPP, PET, PE, and flexible composite films to eliminate film stretch, reduce heat-induced sticking, and deliver clean, burr-free edges at high converting speeds with our premium slitting-knives.
Backing global film converters and processing plants with specialized metallurgy, mirror grinding, and dependable high-volume blade supply.
Overcoming Thin Film Cutting Issues for Superior Web Quality
High-speed converting lines for flexible packaging and technical films demand uncompromising blade geometries and precise friction control. When slitting delicate substrates such as BOPP, PET, PE, CPP, and multi-layer barrier laminates, minor cutting inconsistencies rapidly escalate into major production bottlenecks. Critical thin film cutting issues—such as edge necking, thermal adhesion, poly dust buildup, and rapid blade wear—degrade finished roll quality, triggering costly web breaks, telescoping, and reel scrap.
Shark Cutting provides targeted technical solutions designed to systematically eliminate film converting defects and maximize production yield. By combining fine-grained tungsten carbide alloys, super-mirror edge grinding, and low-friction surface coatings, our industrial knives achieve significant blade friction reduction and minimize heat generation across demanding web slitting operations.
Film Stretching and Deformation
Excessive cutting resistance during high-speed web travel causes localized tension imbalances, edge necking, and stretching on elastic films. Sub-optimal blade bevels push material prior to cutting, resulting in roll telescoping and inconsistent slit widths. Upgrade your line with specialized razor slitting knives to ensure effortless material penetration.
Technical Optimization Path
- Utilizes sub-micron razor edges with tip radii below 0.2 µm for clean shear
- Engineers low-resistance bevel geometries that achieve up to 40% blade friction reduction
- Maintains uniform web tension across ultra-thin flexible and elastic substrates
Friction-Induced Heat Adhesion
Frictional contact between the blade body and moving web accumulates localized thermal energy. This heat causes temperature-sensitive polymers to soften, melt, and stick to the blade edge, resulting in resin buildup, web dragging, and costly blade wrap-ups.
Technical Optimization Path
- Applies low-friction PVD coatings including Titanium Nitride (TiN) and Diamond-Like Carbon (DLC)
- Dramatically advances blade friction reduction, dropping coefficient of friction below 0.10
- Prevents polymer thermal bonding to support uninterrupted high-speed slitting runs
Edge Burrs and Poly Dust Generation
Microscopic grinding marks and uneven edge profiles shear plastic film uncleanly, causing polymer sloughing. This generates fine poly dust that contaminates optical film surfaces, clogs downstream rewind rolls, and leaves jagged burrs on slit edges.
Technical Optimization Path
- Incorporates super-mirror finish grinding achieving surface roughness Ra below 0.05 µm
- Eliminates micro-serrations to guarantee glass-smooth, burr-free slit edge profiles
- Prevents microscopic debris creation for cleanroom-specification technical film converting
Rapid Wear on Hard & Abrasive Films
Processing highly abrasive technical films, ceramic-filled battery separator webs, or matte-finished PET leads to rapid blade dulling. Conventional carbon steel knives require frequent operator intervention and line-stopping blade changes. Explore our full range of industrial slitting knives engineered to extend blade life under heavy wear.
Technical Optimization Path
- Employs fine-grain solid tungsten carbide and powder metallurgy HSS substrates
- Extends continuous blade operating life by 300% to 500% over standard tooling
- Minimizes downtime and solves thin film cutting issues across long production runs
Comprehensive Web Quality Optimization for Industrial Converting
Achieving burr-free slitting on flexible substrates requires precise matching of knife geometry, material hardness, and surface coating to specific web mechanics. When converting engineers adjust slitter setup variables—such as shear angle, blade overlap, and lateral canting force—cutting resistance must remain strictly controlled.
Shark Cutting engineers precise cutting profiles tailored for razor, burst, and high-performance shear slitting knives. Our advanced manufacturing technology and tight quality control processes eliminate micro-chipping along the blade edge, ensuring clean shear propagation across flexible packaging films and high-value technical substrates.
Technical Benchmark Comparison for Film Slitting Blades
| Performance Metric | Standard Steel Slitting Blades | Shark Cutting Precision Blades | Operational Advantage |
|---|---|---|---|
| Edge Surface Roughness | Ra 0.20 to 0.40 µm | Ra < 0.05 µm (Super-Mirror Finish) | Eliminates poly dust generation and edge burrs |
| Coefficient of Friction | 0.35 to 0.50 CoF | 0.08 to 0.12 CoF (TiN / DLC Coated) | Prevents thermal film adhesion and resin buildup |
| Edge Radius Sharpness | 1.0 to 2.0 µm | Sub-micron (< 0.2 µm) | Delivers blade friction reduction and prevents web necking |
| Continuous Wear Lifespan | Baseline 1x cycle | 3x to 5x extended operating life | Reduces blade change stops and tooling costs |
Film Slitting Blade Solutions for Different Converting Applications
Reduce friction resistance and eliminate web stretching, preventing edge deformation and poly dust buildup during high-speed slitting runs. Explore our full catalog of industrial cutting products to optimize your processing line.
Precision Slitting Blades for Ultra-Thin & Sensitive Web Materials
Designed for flexible packaging converters, film extruders, and technical textile processors requiring clean, dust-free slit edges. Our high-performance razor slitting knives deliver exceptional edge retention and stability across demanding production schedules.

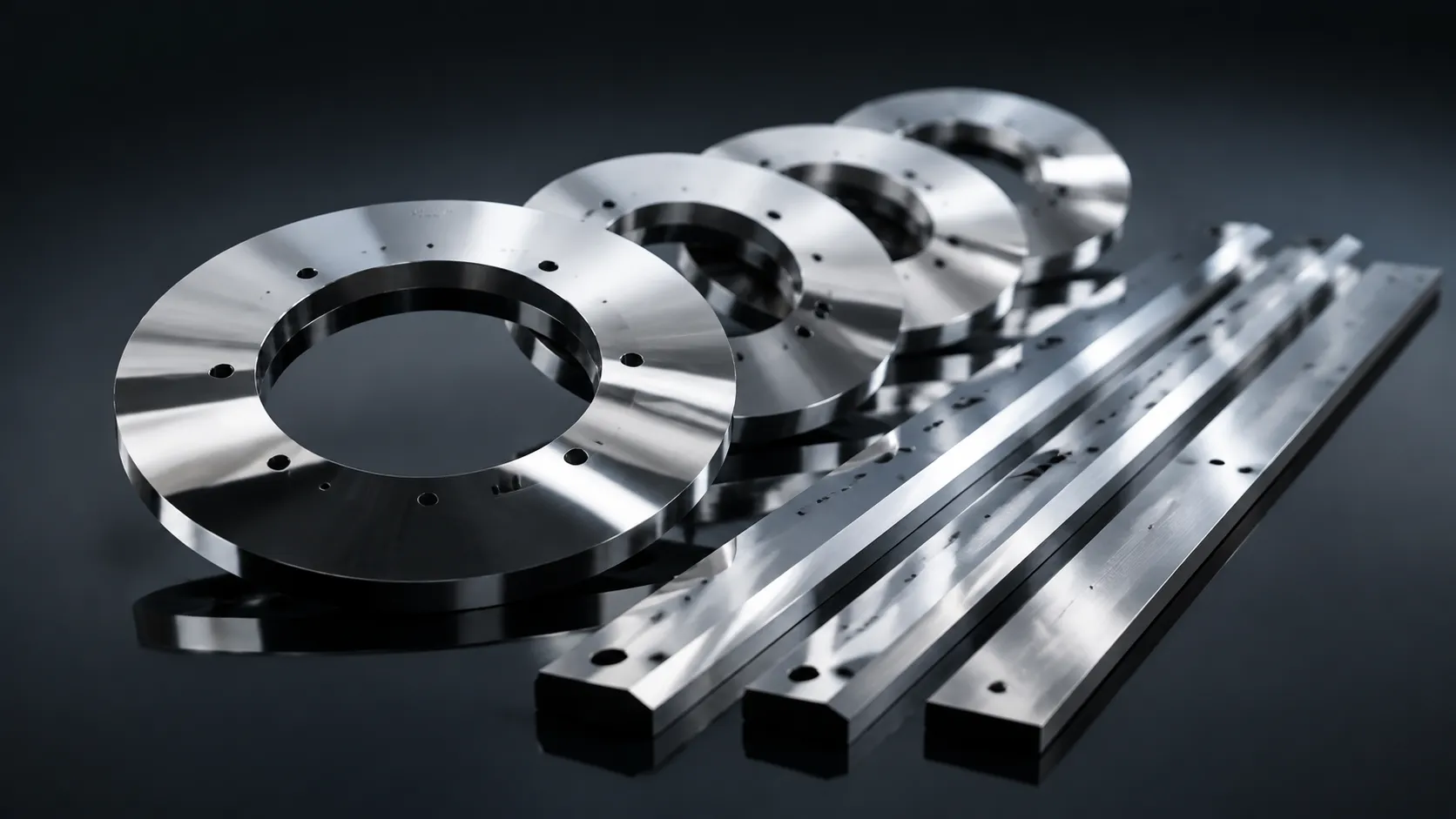

Solid Carbide Super Mirror Razors
Engineered with ultra-fine tungsten carbide for zero dust generation and high edge retention on sensitive optical webs.
- Film Compatibility: BOPP, Optical PET, CPP, Clear Barrier Films
- Dimensional Range: 43mm x 22mm (Thickness: 0.10mm, 0.15mm, 0.20mm)
- Substrate Options: Sub-micron Tungsten Carbide
- Edge Finish: Super-Mirror Polished (Ra < 0.05μm)

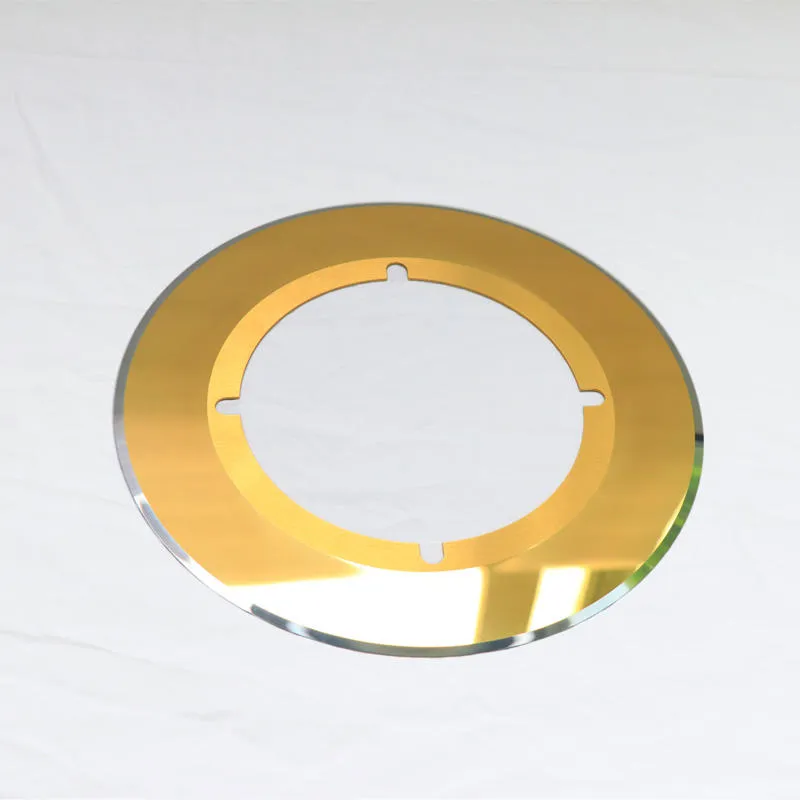

TiN Coated Slitting Razors
Titanium Nitride PVD coating minimizes friction heat accumulation, preventing thermal adhesion and film melt-bonding.
- Film Compatibility: PE, Co-extruded Barrier Film, Laminated Packaging
- Dimensional Range: 57mm x 19mm (Thickness: 0.20mm, 0.38mm, 0.40mm)
- Substrate Options: Premium M2 High-Speed Steel (HSS)
- Surface Treatment: TiN Low-Friction Coating

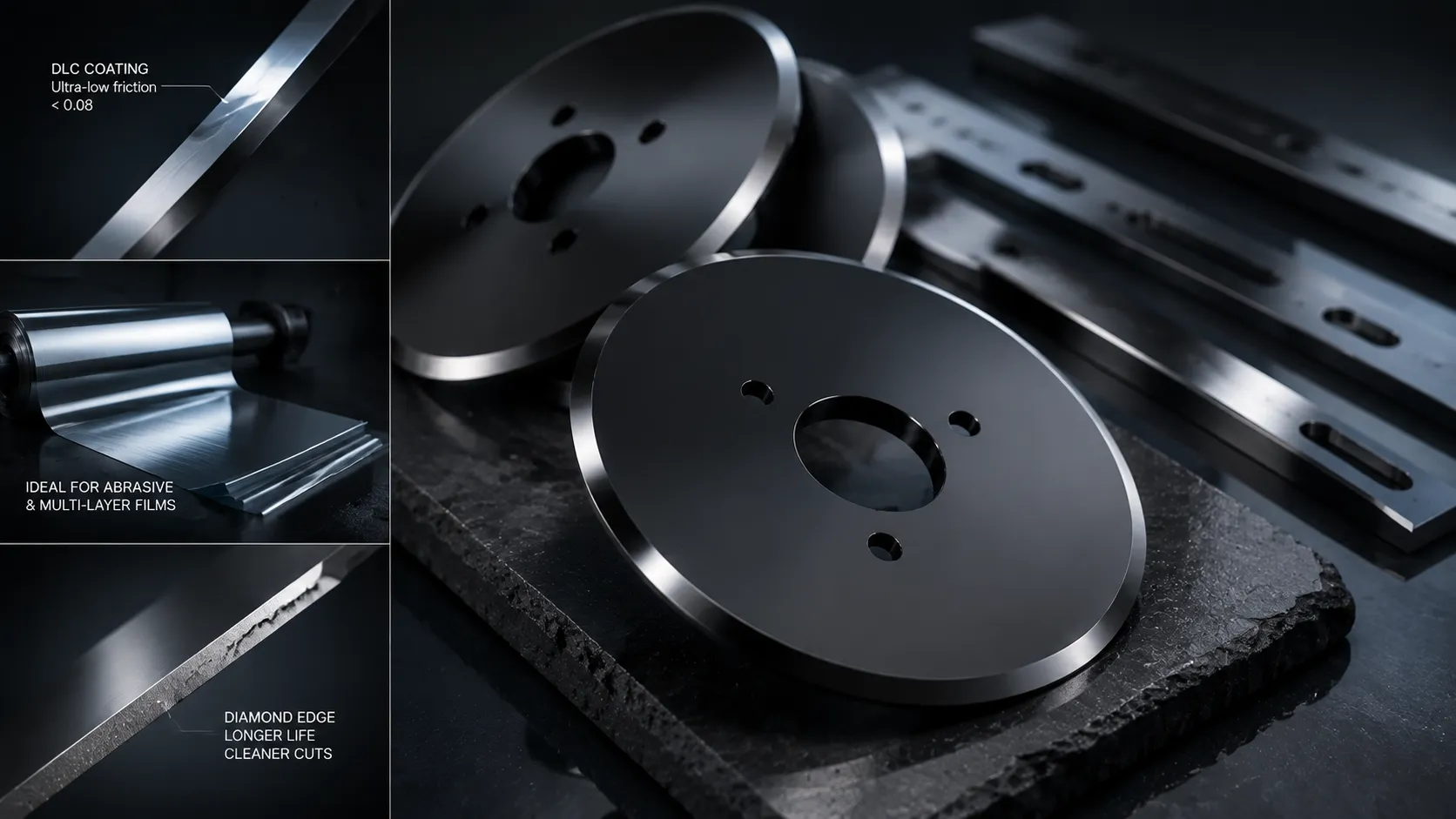

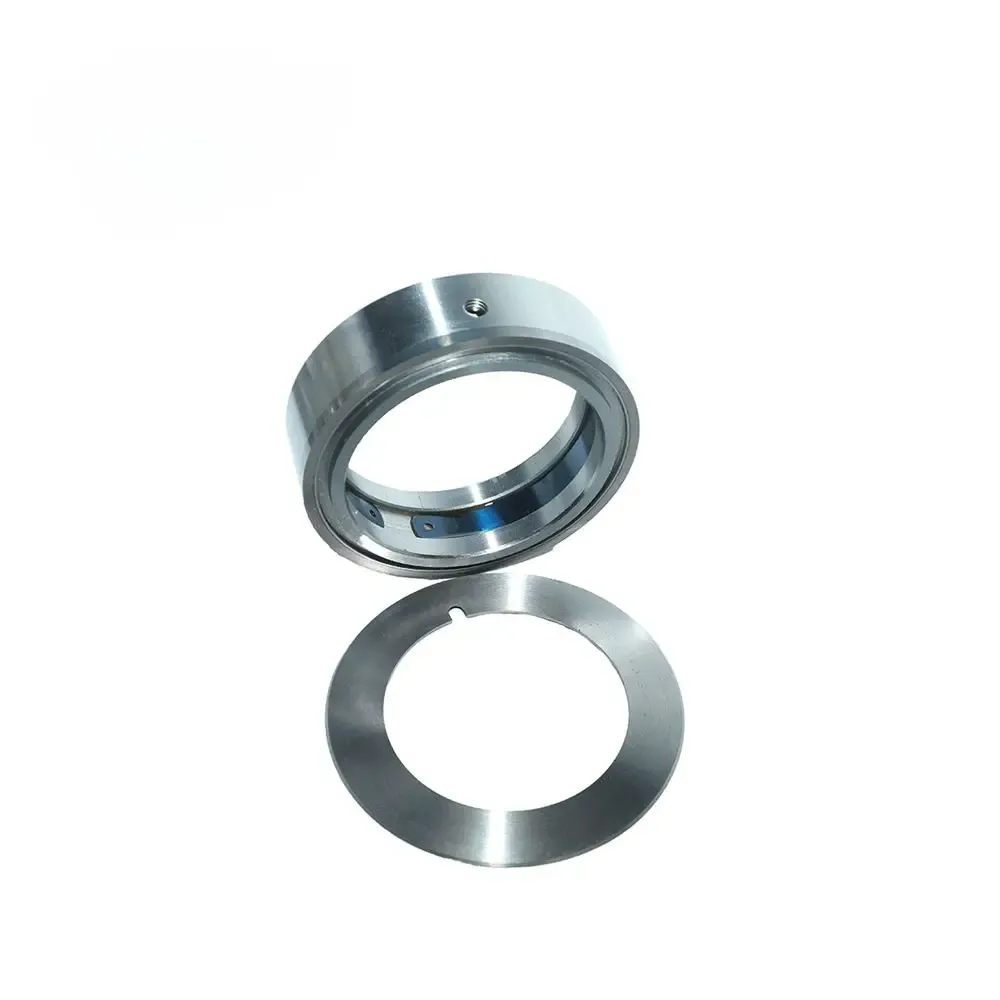

DLC Coated Diamond Edge Razors
Diamond-Like Carbon coating delivers an ultra-low friction coefficient below 0.08, maximizing lifespan on abrasive films.
- Film Compatibility: Metallized PET, Multi-layer Foils, Hard Coated Films
- Dimensional Range: Standard 3-Hole and Slotted Slitter Formats
- Substrate Options: Micro-grain Carbide Substrate
- Surface Treatment: DLC (Diamond-Like Carbon)
| Razor Blade Model | Base Substrate | Coating Option | Friction Coefficient | Target Film Types | Machinery Fit |
|---|---|---|---|---|---|
| Shark-Razor SuperMirror | Fine-Grain Carbide | Uncoated / Mirror Ground | 0.12 | BOPP, PET Optical, CPP | Kampf, Atlas, Titan |
| Shark-Razor TiN Gold | M2 High-Speed Steel | TiN (Titanium Nitride) | 0.10 | PE, Laminated Packaging | Dusenbery, Goebel |
| Shark-Razor DLC Extreme | Sub-Micron Carbide | DLC (Diamond-Like) | < 0.08 | Metallized & Abrasive Films | Universal Slitter Holders |

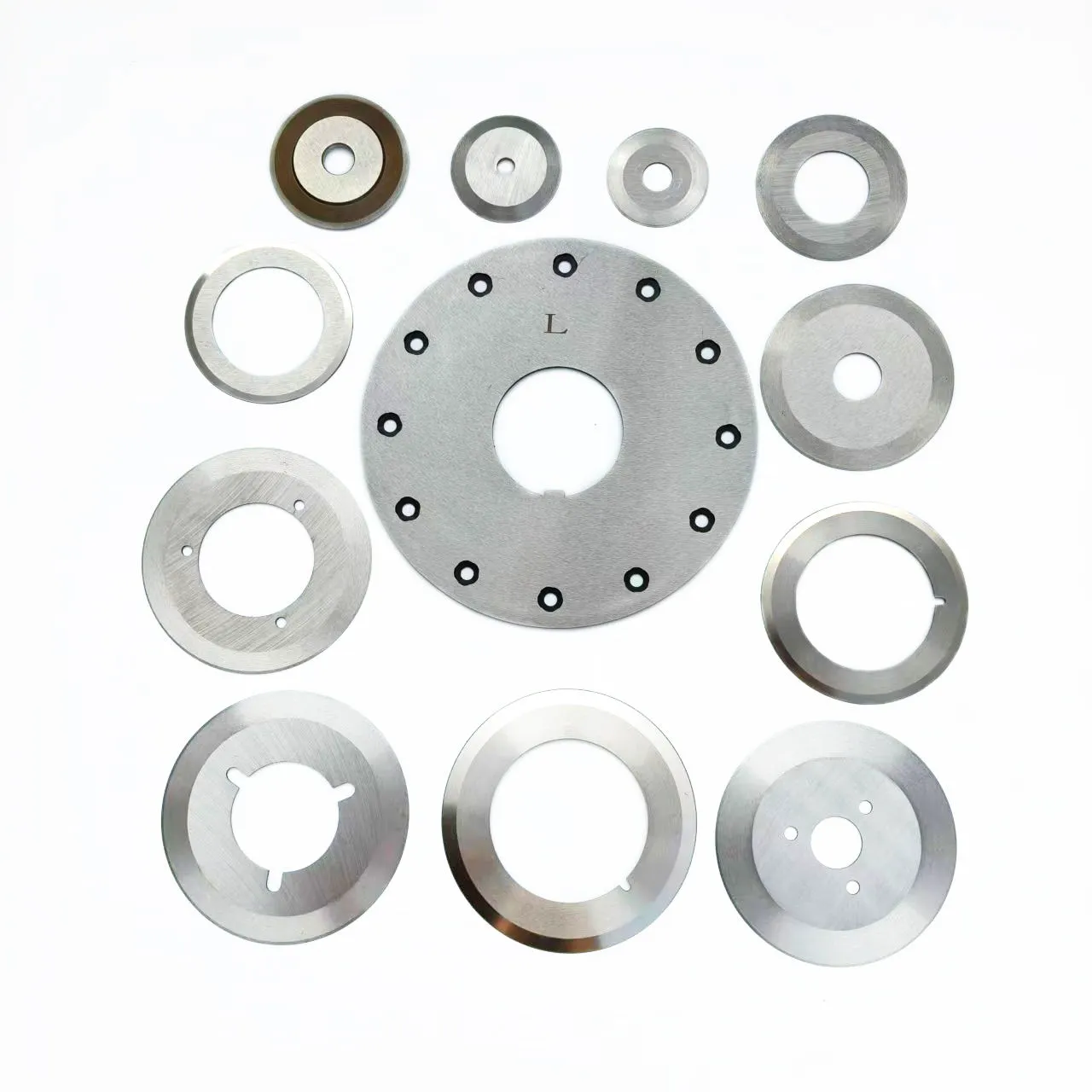

Circular Film Slitters for Continuous High Speed Web Lines
Engineered for continuous web slitting and rewind shaft support across thick films, technical laminates, and heavy flexible packaging materials. Sharkcutting circular slitter knives feature tight axial runout tolerances (within ±0.002mm) and precise dynamic balance, eliminating blade wobble and maintaining pristine edge separation at high line speeds.
Top and Bottom Dish Slitter Sets
Matched circular rotary knife sets optimized for precision shear cutting without edge burrs or stringers.
- Film Compatibility: Thick PET, Heavy PE, Technical Laminates
- Dimensional Range: Outer Diameter 80mm to 300mm
- Substrate Options: Tungsten Carbide, D2 / High-Cr Tool Steel
- Runout Tolerance: Axial Runout ≤ 0.002mm

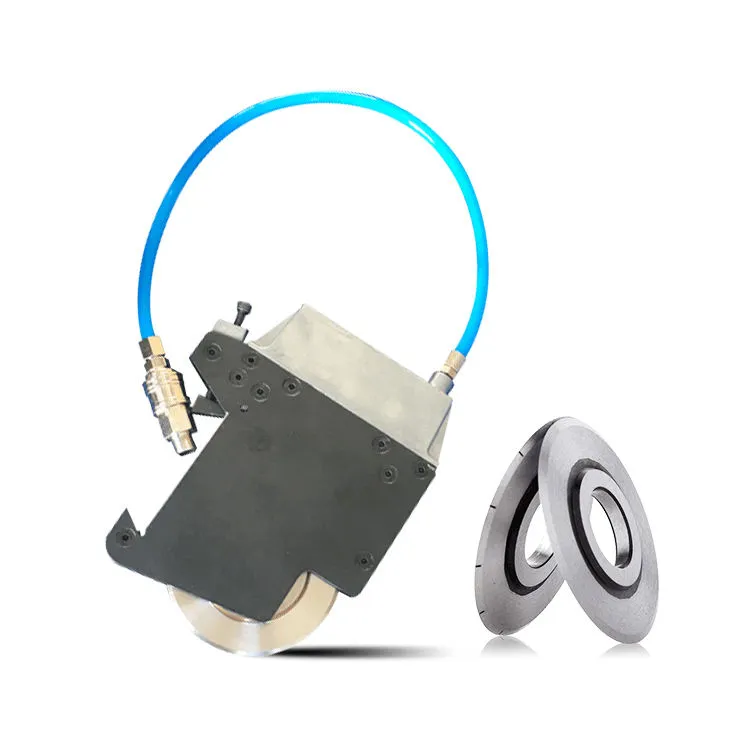

Pneumatic Holder Circular Slitters
Designed for quick setup changeovers and uniform lateral pressure control on automated slitter rewinders.
- Film Compatibility: Flexible Packaging, High-Speed Extrusion Lines
- Dimensional Range: Standard Air-Shaft Bore Sizes
- Substrate Options: Powder Metallurgy High-Speed Steel (PM-HSS)
- Bevel Geometry: Single or Double Bevel Precision Ground

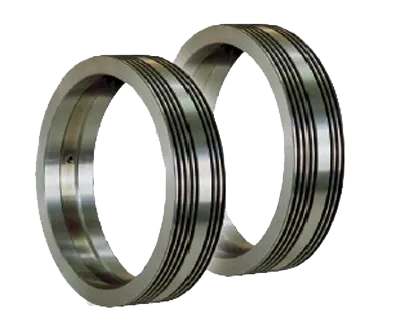

Multi-Groove Female Anvil Rings
Precision-ground bottom shear rings featuring hard wear-resistant land surfaces for high-density multi-strip slitting.
- Film Compatibility: Narrow-Strip Film, Battery Separator Films
- Dimensional Range: Custom Widths and Groove Pitches
- Substrate Options: Hardened Tool Steel (62-65 HRC)
- Groove Finish: Micro-Finished Edge Walls
| Circular Knife Model | Base Substrate | Hardness Rating | Concentricity | Recommended Application | Machinery Fit |
|---|---|---|---|---|---|
| Shark-Circ Top Blade | Micro-Grain Tungsten Carbide | 89-92 HRA | ≤ 0.002mm | High-Speed Optical PET Slitting | Kampf, Atlas Rewinders |
| Shark-Circ Pneumatic HSS | PM-HSS Steel | 63-65 HRC | ≤ 0.003mm | Flexible Packaging Shear Cut | Titan, Parkinson Systems |
| Shark-Anvil Female Ring | D2 High-Carbon Chrome Steel | 62-64 HRC | ≤ 0.002mm | Multi-Groove Bottom Shaft Support | Custom Shaft Assemblies |
Shear and Cut Off Knives for Precision Edge Trimming and Cross Cutting
Built for inline edge trimming and precise fixed-length cross-cutting operations on thick plastic films, multi-layer webs, and aluminum foil laminates. Sharkcutting shear and cut-off knives utilize high-fracture-toughness steel substrates paired with micro-ground cutting bevels to ensure sharp cutoffs without edge tearing or thermal distortion.
Inline Edge Trimming Shear Blades
Heavy-duty straight knives for continuous edge web removal with superior impact resistance and long edge retention.
- Film Compatibility: Continuous PVC/PET Web, Foil Laminates
- Dimensional Range: Straight Lengths up to 1800mm
- Substrate Options: Inlaid Carbide / D2 Alloy Steel
- Feature: Regrindable Dual Cutting Edges
Fixed Length Guillotine Cut Off Knives
Engineered for transverse guillotine chopping of thick sheet plastics and multi-ply composite webs.
- Film Compatibility: Thick Rigid Packaging, Technical Plastic Sheet
- Dimensional Range: Tailored Mounting Bolt Pattern and Thickness
- Substrate Options: Premium M2 High-Speed Steel Inserts
- Feature: Shock-Resistant Core with Hardened Edge
Flying Shear Rotary Cutoff Blades
Synchronized rotary cut-off blades designed for continuous extrusion processing lines with minimal web distortion.
- Film Compatibility: Extruded Film Lines, Heavy Industrial Plastic Webs
- Dimensional Range: Custom Rotary Drum Profiling
- Substrate Options: Vacuum Heat-Treated Alloy Tool Steel
- Feature: Zero-Distortion Cutting Bevel
| Cut Off Knife Model | Base Substrate | Max Length | Cutting Edge Angle | Target Web Material | Machinery Fit |
|---|---|---|---|---|---|
| Shark-Shear Trimmer | Inlaid Carbide / D2 Steel | 1800 mm | 18° - 24° Single Bevel | Continuous PVC/PET Edge Trim | Custom Inline Edge Trimmers |
| Shark-Guillotine Heavy | High-Speed Steel M2 | 2200 mm | 22° Compound Bevel | Thick Rigid Film & Sheet | Transverse Chop Systems |
| Shark-Rotary Cutoff | Vacuum-Treated Alloy Steel | 1200 mm | 30° Double Bevel | Extrusion Line Cross Cutting | Rotary Flying Shear Units |
Need Custom Blade Dimensions or OEM Compatibility?
Sharkcutting provides custom OEM manufacturing based on your technical drawings, slitter model numbers, or sample blades.
High-Performance Substrates and Low-Friction Coatings for Exceptional Wear Resistance
High-speed film processing demands precise edge retention, rapid thermal dissipation, and ultra-smooth surface friction to eliminate plastic dust accumulation, stretch marks, and burrs. Pair advanced tool substrates with physical vapor deposition (PVD) surface treatments to maximize slitting efficiency, extend tool life, and maintain flawless cut edges across thin film converting lines with our specialized slitting knives.
Substrate Metallurgy for Precision Film Slitting
Long-lasting cutting performance begins with high-density grain structure and metallurgical purity. Standard steel blades often suffer from rapid micro-chipping and dulling when processing flexible polymers like biaxially oriented polypropylene (BOPP) or polyethylene terephthalate (PET). Premium carbide film blades utilize sub-micron tungsten carbide formulations bound in a dense cobalt matrix, delivering surface hardness up to 1900 HV to resist edge displacement under web tension.
For continuous online shearing and high-impact cutting, refined High-Speed Steels (HSS)—including M2 and D2 tool steel grades—offer optimal fracture toughness using specialized shear slitting knives. High-purity ceramic substrates provide an inert, non-metallic alternative that eliminates static electricity and metallic contamination on optical, display, and barrier films.
Low-Friction Surface Coating Technologies
Friction during high-speed film slitting generates localized heat, causing film adhesion, edge melt-bonding, and severe burring on finished rolls. Applying specialized thin-film PVD coatings drastically reduces friction while reinforcing outer edge hardness.
Engineered TiN coated slitting knives feature a durable Titanium Nitride barrier that minimizes surface drag, reduces polymer adhesion, and extends tool operating life. For ultra-thin films and sensitive converting lines, Diamond-Like Carbon (DLC) coatings lower the coefficient of friction below 0.10, ensuring clean cuts without stretching or heat deformation.
Operational Benefits for Converting Lines
- 3x to 5x Tool Life Extension: Micro-grain carbide substrates paired with multi-layer PVD coatings lower blade wear rates and reduce tooling cost per converted roll.
- Reduced Maintenance Downtime: Anti-stick coatings minimize plastic residue buildup, allowing slitters to run continuously with fewer cleaning stops.
- Superior Coating Bond Strength: Advanced ion-plating deposition guarantees strong interfacial adhesion between substrate and coating, preventing flaking under stress.
Material & Coating Specification Comparison
| Substrate / Coating Type | Hardness (HV) | Friction Coeff. | Primary Application | Tool Life Baseline |
|---|---|---|---|---|
| Standard M2 HSS | 750 to 850 HV | 0.55 to 0.65 | Standard PE, PP & Paper | 1.0x Baseline |
| Sub-Micron Tungsten Carbide | 1600 to 1850 HV | 0.40 to 0.50 | PET, Rigid PVC & Laminates | 3.0x to 4.0x |
| TiN Coating on Carbide | 2300 to 2500 HV | 0.22 to 0.30 | BOPP, OPP & Abrasive Films | 3.5x to 4.5x |
| DLC Coating on Carbide | 3000 to 3500 HV | < 0.10 | Ultra-Thin PET & Optical Web | 4.0x to 5.5x |

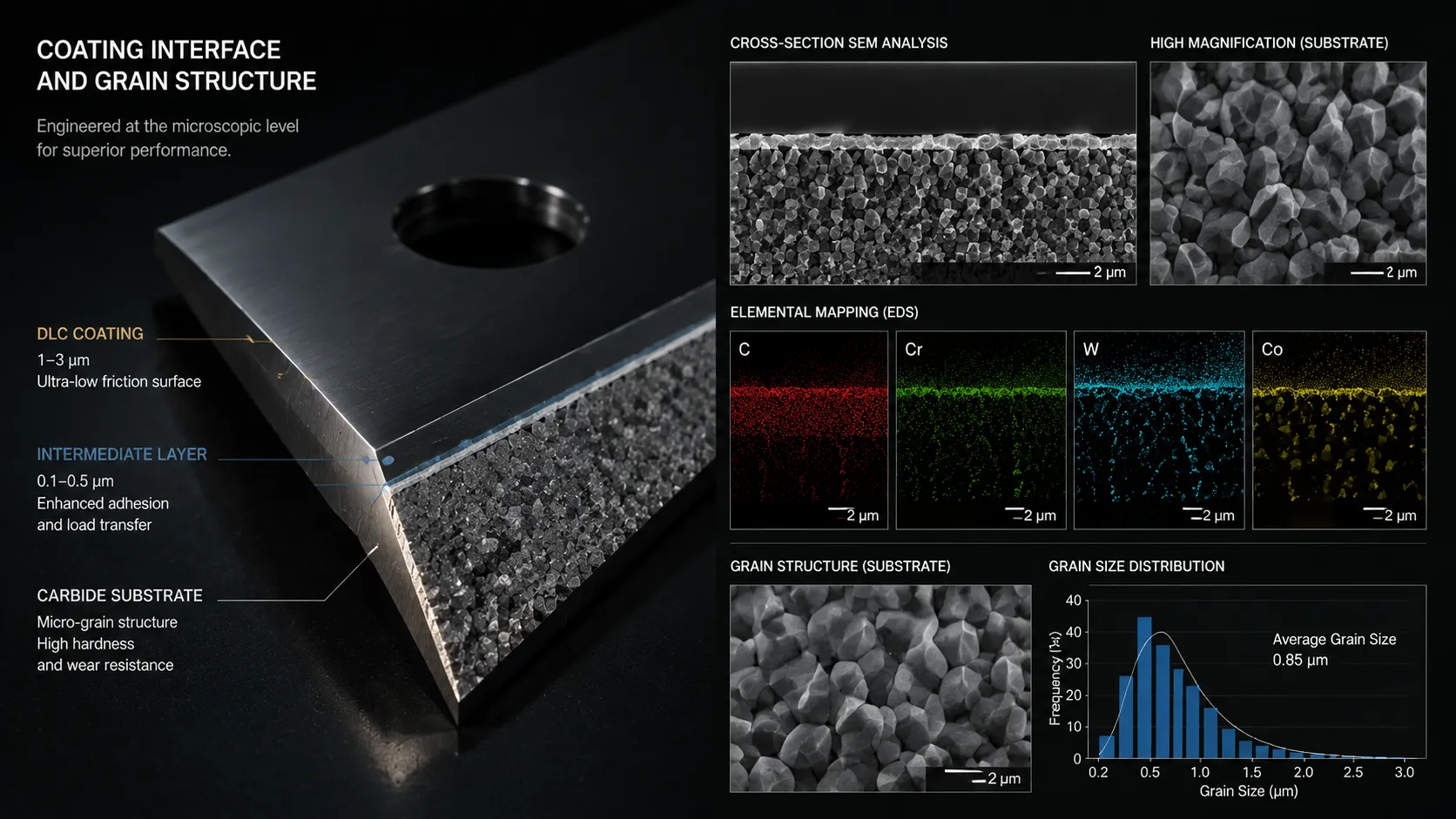

Coating Interface and Grain Structure
Cross-sectional schematic highlighting atomic bonding between sub-micron tungsten carbide grains and anti-friction PVD coatings. Strong interfacial adhesion prevents surface peeling during intensive high-speed shear slitting.
Precision Heat Treatment and Metallurgical Control
At Sharkcutting, strictly selecting premium steel and tungsten carbide materials paired with micro-level heat-treatment processes guarantees repeatable performance across every production batch. Our rigorous vacuum heat treatment optimizes grain refinement and eliminates internal stress prior to precision grinding.
Precision Cutting Across Diverse Flexible Materials and Substrates
Achieving defect-free web slitting requires aligning knife geometry, blade metallurgy, and surface coatings with the physical dynamics of specific film substrates. Shark Cutting delivers tailored slitting tools engineered to eliminate edge burrs, film stretch, static friction, and thermal adhesion across high-speed converting lines.
Packaging Films BOPP and OPP Packaging Films
Designed for high-speed continuous web slitting where micro-dust formation and burred edges cause severe roll rewind defects. Our high-performance razor-slitting-knives ensure smooth cuts.
Preventing edge fuzz and static poly dust accumulation at speeds over 600 m/min.
Solid Carbide Super-Mirror Razor Blades
- Ultra-mirror edge finish for BOPP film cutting
- Minimal friction and heat buildup
- Extended blade life on high-tension lines

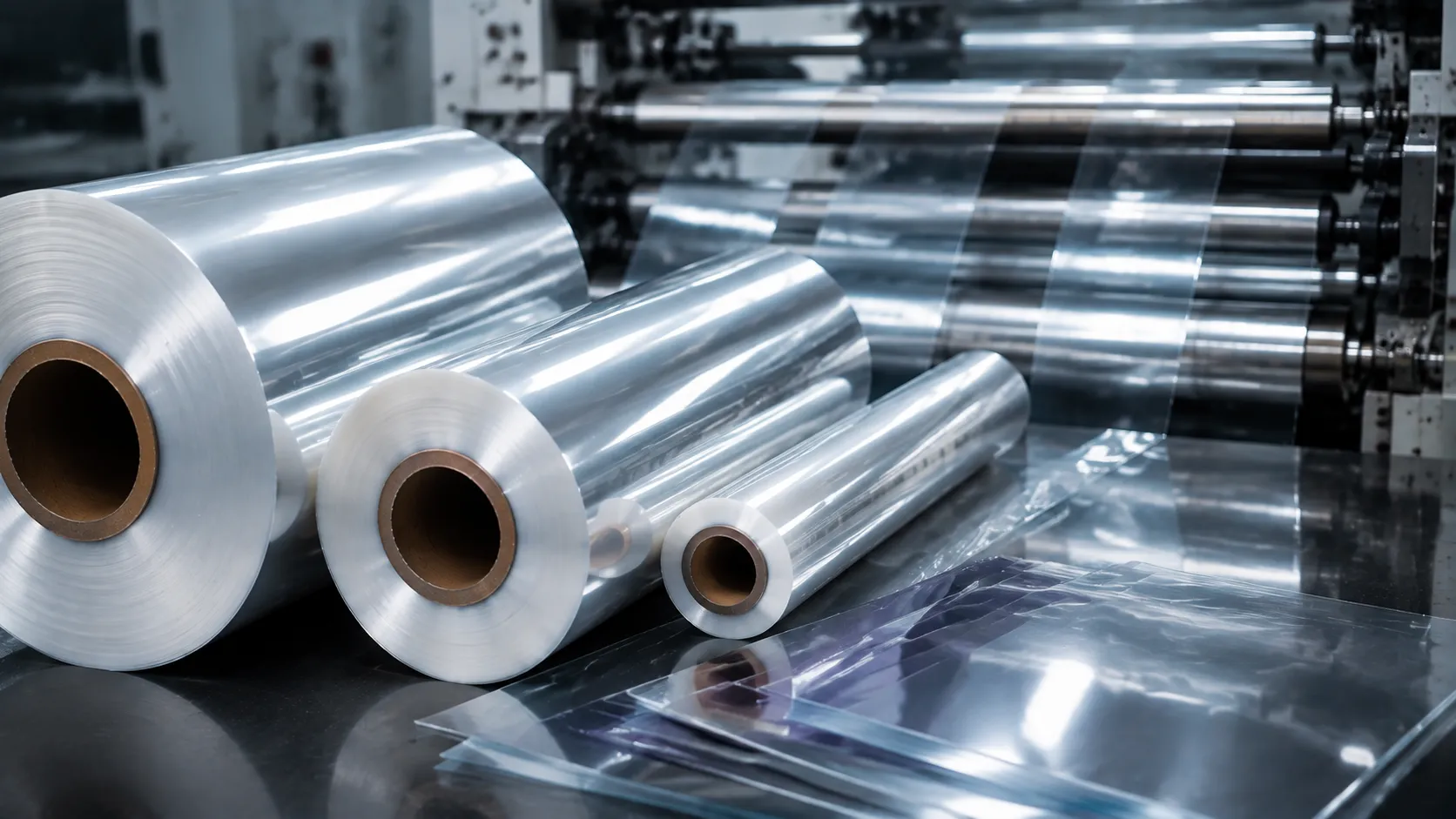

Technical and Display PET Optical and Functional Films
Optimized for delicate display coatings, release liners, and solar backsheets requiring flawless scratch-free surface integrity.
Eliminating micro-chipping, lateral deformation, and surface scratch contamination.
Solid Carbide Circular Slitters
- Tight axial runout tolerance for PET film slitting
- Fine-grain sub-micron tungsten carbide substrate
- Zero surface scratch generation on web faces
Flexible Packaging PE and CPP Flexible Packaging
Tailored for soft, elastic poly films that are prone to stretching, thermal melt-sticking, and edge necking under cutter friction.
Overcoming high frictional drag that stretches web edges and creates melted bead build-up.
DLC Coated Slitting Blades
- Diamond-like carbon anti-adhesion coating
- Low-friction cutting blades technology
- Clean edge separation without material stretch
Multi Layer Web Aluminum Foil Laminates and Multi Layer Web
Engineered for tough barrier materials combining metal foils, paperboard, and polymer layers demanding high impact strength with precision shear-slitting-knives.
Preventing layer delamination and rapid edge wear caused by abrasive metallic foil layers.
Premium Shear Knife Sets
- Powder metallurgy HSS and micro-grain carbide
- High impact toughness and chip resistance
- Sharp multi-layer shear without foil fraying
Substrate Compatibility and Blade Selection Matrix
Selecting the optimal blade metallurgy and edge geometry directly influences machine uptime, blade changeover frequency, and web edge quality in industrial film converting. Shark Cutting specializes in matching exact substrate characteristics with high-performance film slitting blades.
| Substrate Type | Primary Defect Risk | Recommended Tool Substrate | Surface Treatment | Target Web Edge Result |
|---|---|---|---|---|
| BOPP and OPP Packaging Film | Poly dust, film stretching, static buildup | Sub-micron Solid Carbide | Super-Mirror Polishing | Dust-free, straight rewound edges |
| PET Optical and Functional Film | Surface scratching, burrs, micro-cracks | Fine-Grain Tungsten Carbide | Precision Lapped Side Flanks | Flawless scratch-free web finish |
| LDPE and LLDPE and CPP Film | Friction melt-sticking, blade drag | Tungsten Carbide or High-Speed Steel | DLC Diamond-Like Carbon Coating | Clean cut without heat deformation |
| Foil Laminates and Paperboard Web | Rapid blade wear, layer delamination | Powder Metallurgy HSS or Carbide Tipped | TiAlN Heavy-Duty Coating | Smooth, cohesive barrier edge shear |
Custom Tooling Profiles for Specialty Web Substrates
Don't see your specific film grade or slitting machine model? Shark Cutting customizes cutting profiles, edge bevel geometries, and surface coatings for diverse materials and machinery models to ensure stable operation across complex film processing tasks.
Rigorous Quality Control and Micron-Level Dimensional Precision
At Shark Cutting, multi-stage inspection protocols guarantee absolute blade dimensional accuracy across every production lot. Utilizing advanced precision grinding technology, we deliver burr-free edges engineered to eliminate film web tearing and costly machine downtime.
Raw Material Verification
Spectrometric analysis verifies chemical composition and alloy purity in high-grade tungsten carbide and tool steel batches.
Geometric Metrology
Optical projection and coordinate measuring machines hold thickness, flatness, and runout tolerances within ±0.002mm.
Microscopic Edge Inspection
High-magnification microscopic testing confirms zero micro-chipping, micro-cracks, or surface flaws along the cutting bevel.
QA & Dispatch Protection
Full batch audit accompanied by anti-corrosion treatment and impact-resistant barrier packaging prior to shipment.

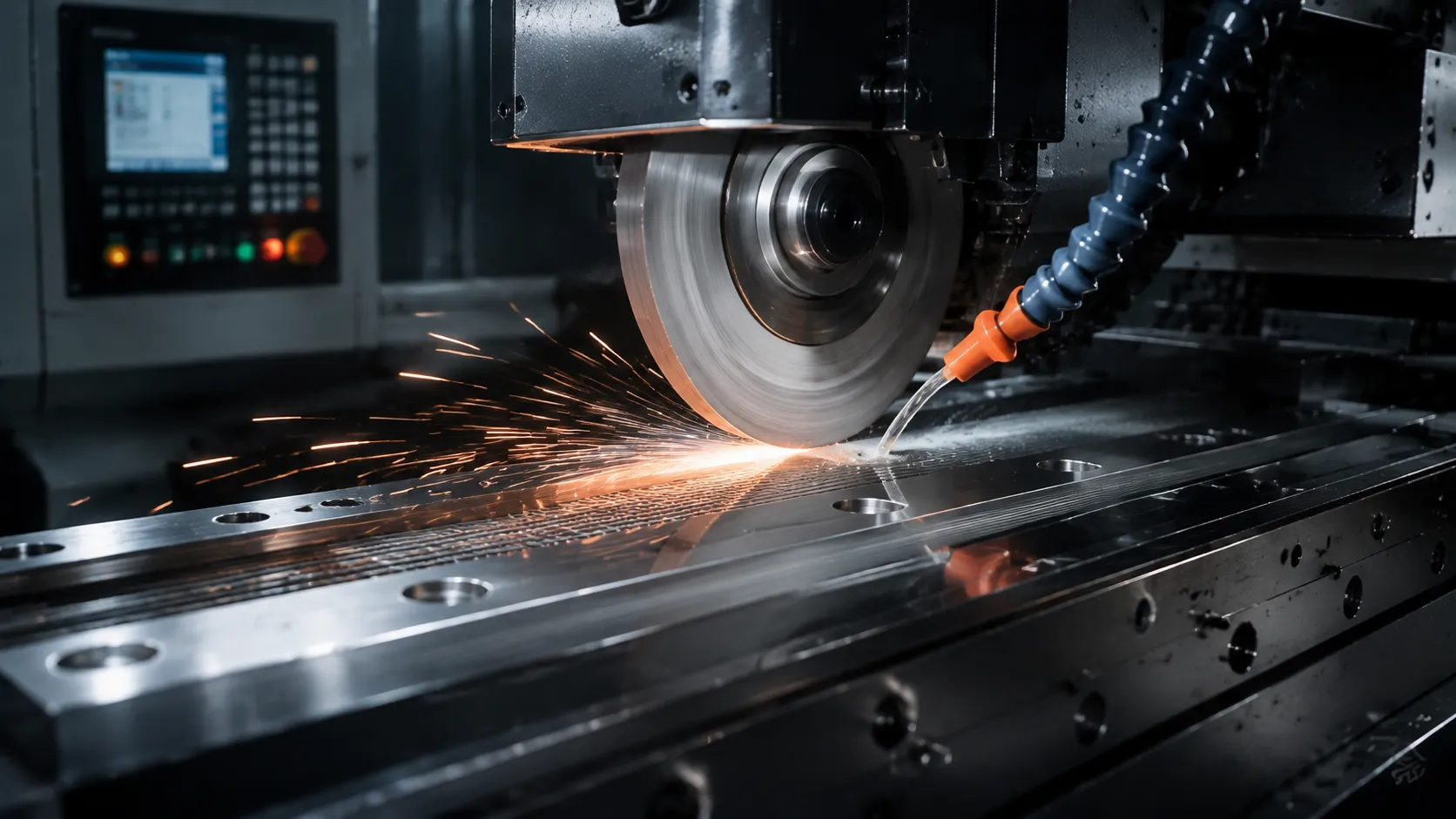

Precision Grinding Technology Built for Extreme Industrial Demands
Shark Cutting combines state-of-the-art precision grinding technology with strict optical verification. By maintaining exceptional blade dimensional accuracy, our specialized film cutting knives eliminate edge dust, reduce web tension variances, and maximize production throughput worldwide.
Frequently Asked Questions About Film Processing Blades
Optimizing flexible film converting operations requires precise tool geometry, proper material selection, and low-friction surface coatings. Sharkcutting delivers high-performance industrial knives designed to eliminate film defects, lower cutting resistance, and extend slitting blade lifetime across BOPP, PET, PE, and multilayer packaging films.
Processing sensitive optical-grade PET films demands sub-micron edge precision to prevent edge flaking, micro-chipping, and surface scratching. We recommend solid fine-grain tungsten carbide razor slitting knives featuring super-mirror bevel polishing with a surface roughness of Ra < 0.05μm.

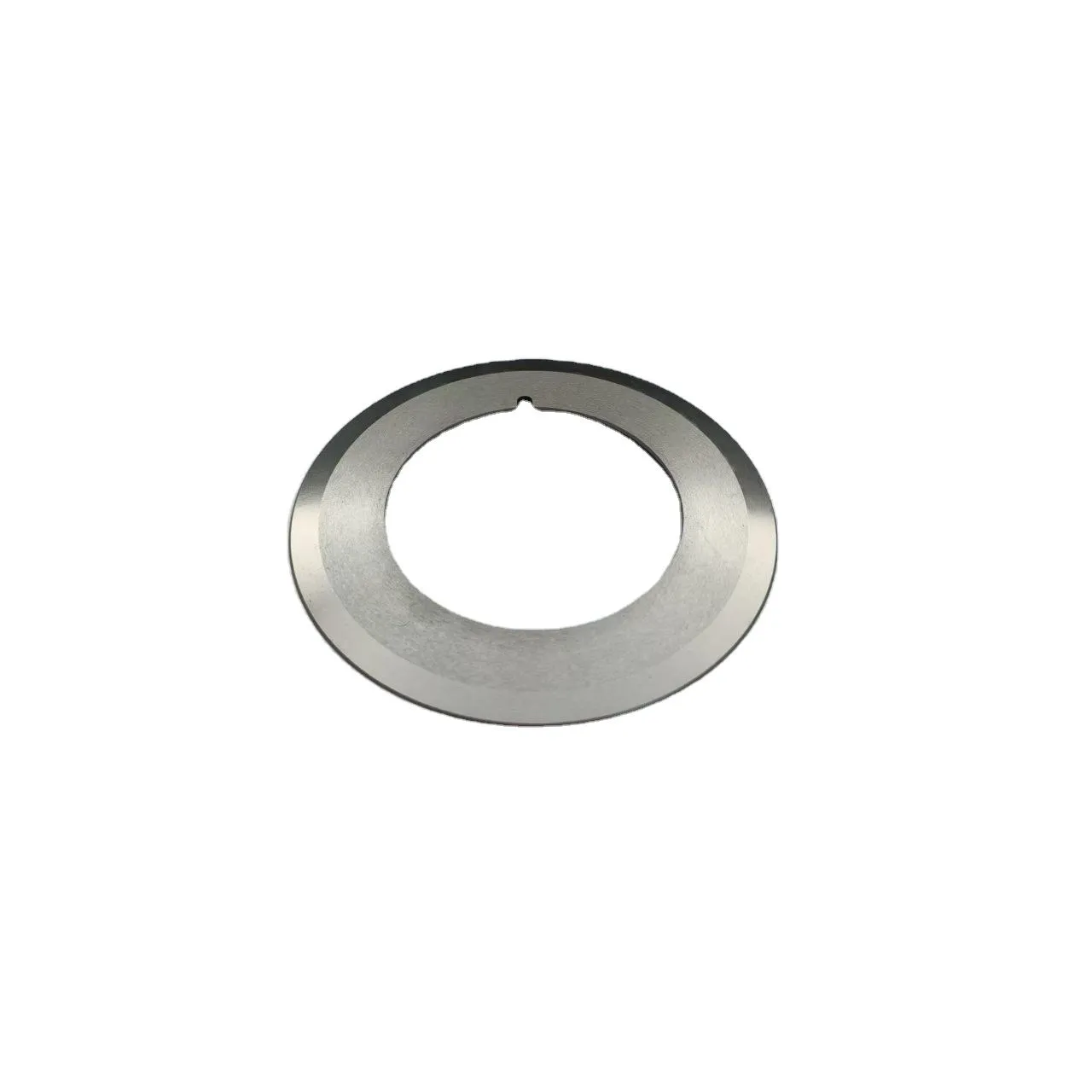

When paired with advanced Diamond-Like Carbon (DLC) low-friction surface coatings, static charge accumulation and localized friction heat are virtually eliminated. This ensures pristine optical clarity, flat roll edges, and dust-free slitting performance during high-speed converting.
Technical Consultation for Film Processing
Have specialized film grades, multi-layer web structures, or unique machine requirements? Sharkcutting application engineers provide direct tooling support and custom blade manufacturing.
- Engineering drawing analysis in 24 hours
- Custom carbide and DLC coating recommendations
- Sample blade evaluation for converting plants
Backing major international film processing and converting operations with ISO-certified manufacturing and worldwide express delivery.
