Overview

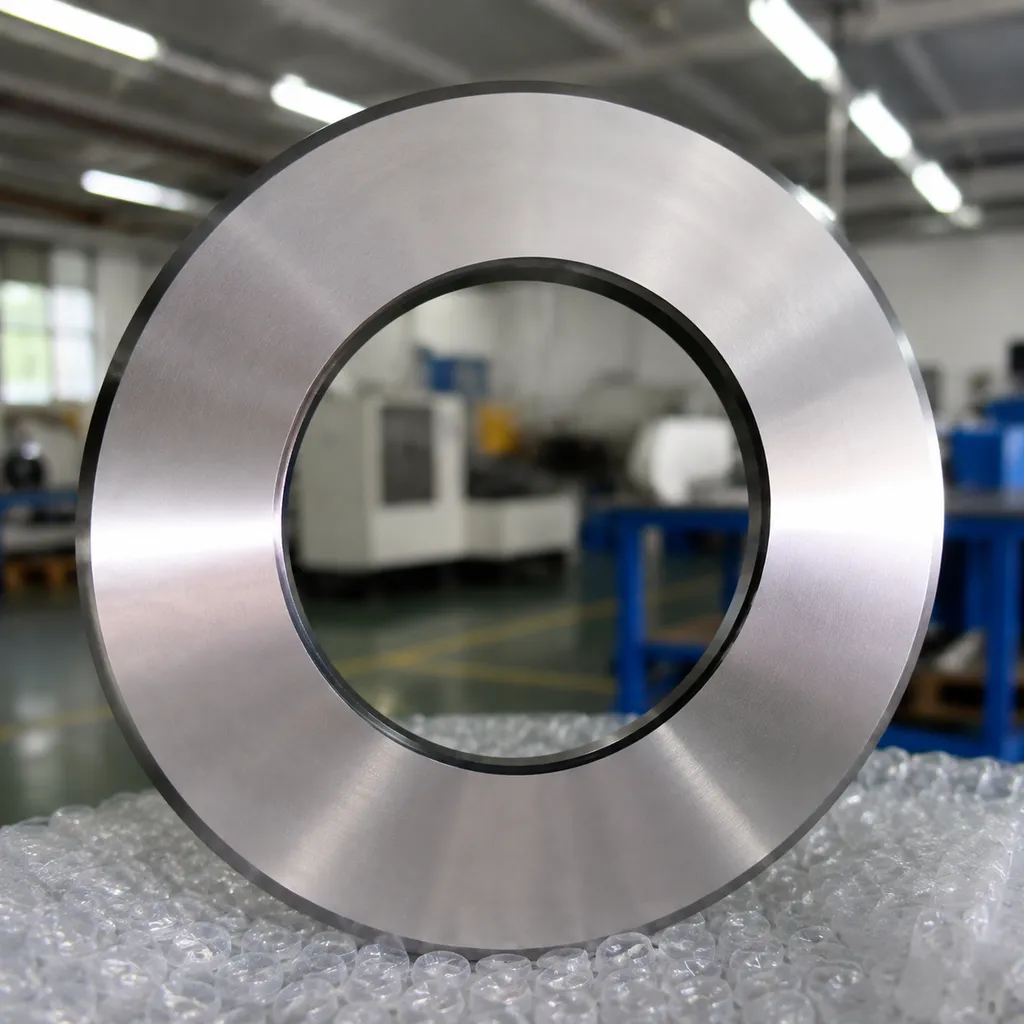

Tungsten Carbide Slitter Knife Supplier
Sharkcutting as a direct factory tungsten carbide slitter knife supplier, we manufacture solid carbide and carbide-inlaid rotary slitter blades that deliver up to 10x longer wear life compared to standard tool steel.
Operational Advantages
- Minimized Downtime: Drastically reduce blade changeovers and keep high-speed converting lines running continuously.
- Micro-Chipping Resistance: Tough micro-grain formulations withstand high impact and severe stress.
- Dust-Free Edge Quality: Mirror-polished cutting edges produce clean shear cuts without generating slitting dust or debris.
- Anti-Adhesion Finish: Superior surface smoothness prevents resin, glue, and sticky adhesive buildup.
Performance Comparison
| Blade Configuration | Target Application | Operational Benefit | Lifespan Increase |
|---|---|---|---|
| Solid Tungsten Carbide | High-precision film, foil, and paper converting | Maximum wear resistance and extreme edge sharpness | Up to 10x vs. Steel |
| Carbide-Inlaid | Heavy-duty corrugated board and abrasive slitting | Impact absorption combined with a hardened cutting zone | Up to 6x vs. Steel |
Fast-Track Procurement
Upgrade your converting lines with precision industrial carbide knives direct from the manufacturer. Request a guaranteed 24-hour factory quote or submit your CAD drawing to get started.
Tungsten Carbide Slitter Knife Manufacturer Technical Specs
As a direct tungsten carbide slitter knife manufacturer, we control the entire metallurgical process to ensure maximum edge retention and dimensional stability. We start with ultra-fine micro-grain tungsten carbide powder processed under High Isothermal Pressure (HIP) sintering. This eliminates internal porosity, while cryogenic stress relief and vacuum heat treatment prevent thermal distortion during continuous, high-speed cutting runs.
To fit different converting machine setups and budgets, we engineer both solid carbide and carbide-inlaid options. You can explore our slitter blade material guide for detailed metallurgical options, or review our analysis on carbide vs steel knives to select the best configuration for your material.
Solid Carbide vs. Carbide-Inlaid Performance Matrix
| Feature | Solid Tungsten Carbide | Carbide Inlaid (Tipped) |
|---|---|---|
| Hardness Range | 88–92 HRA | 88–91 HRA |
| Blade Composition | 100% Micro-Grain Carbide | High-Strength Steel Body with Carbide Edge |
| Shock Resistance | Moderate | High |
| Wear Life | Up to 10x vs Tool Steel | Up to 6x vs Tool Steel |
| Primary Target | Highly abrasive films, foils, paper | Heavy-duty slitting, high-impact web lines |
Precision Micro-Finish & Edge Quality
- Tight Tolerances: Precision CNC ground up to ±0.001 mm to eliminate runout and wobbling at high RPMs.
- Ultra-Smooth Surface: Super-finished edge polishing achieving Ra < 0.1 µm mirror finish.
- Clean Web Flow: Lower friction coefficient prevents drag, drastically reducing glue, resin, and dust buildup on the cutting edge.
Tungsten Carbide Slitter Knife for Sale Across Converting Industries
- Flexible Packaging & Film Converting: Cleanly shear Polyethylene (PE), PET, BOPP, and multi-layer barrier films without stretch marks or lip formation.
- Corrugated Board & Paper Converting: Specialized blades engineered for continuous corrugators and razor slitting setups, including heavy-duty paper converting slitter knife designs that eliminate dust generation.
- Metal Foil & Non-Woven Fabrics: Precision burr-free slitting for aluminum foil, copper battery separators, and technical fabrics using our wear-resistant circular slitter knives.
OEM Machine Compatibility & Stock Dimensions
We manufacture exact drop-in replacements for leading OEM converting equipment, matching factory tolerances for BHS, Fosber, Marquip, Mitsubishi, Agnati, Peters, Zünd, and Lutz.
| Dimension Parameter | Standard Stock Range | Custom Engineering Options |
|---|---|---|
| Outer Diameter (OD) | 50 mm – 450 mm | Custom sizes tailored to CAD drawings |
| Inner Diameter (ID) | 10 mm – 150 mm | Ground bores with keyed or pinhole options |
| Thickness | 0.5 mm – 10 mm | Ultra-thin razor profiles to heavy rotary shears |
| Bevel Geometry | Single, Double, Compound | Grinds optimized from 10° to 45° edge bevels |

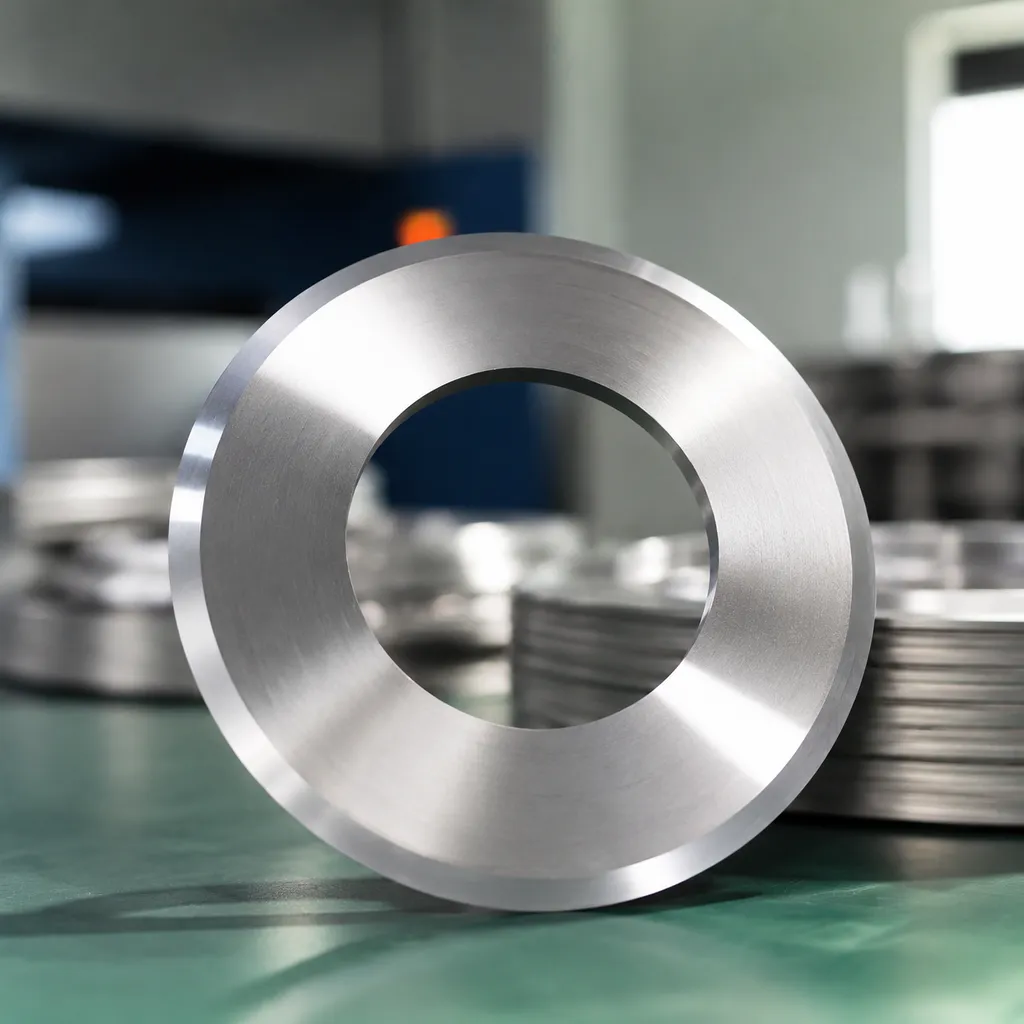

Custom CAD & Reverse Engineering for Tungsten Carbide Slitter Knives
We provide tailored manufacturing to solve your unique line bottlenecks. If you lack original technical drawings, we utilize advanced 3D Coordinate Measuring Machines (CMM) to reverse-engineer worn physical blade samples into exact digital blueprints. Through our custom engineering services, we replicate original dimensions while correcting wear patterns to maximize cut precision.
Precision Edge Bevel Geometries
We grind custom bevel configurations on every tungsten carbide slitter knife to optimize edge life and web flow for your specific substrate:
- Single Bevel: Delivers clean shear cutting for standard film and paper converting.
- Double Bevel: Provides enhanced structural strength to prevent chipping on abrasive materials.
- Compound Angle Grinding: Reduces side-friction drag and extends sharpness during continuous high-speed runs.
- Hollow Ground Edges: Creates ultra-sharp cutting action for delicate non-wovens, copper battery separators, and razor slitting.
Advanced Performance Surface Coatings
To eliminate glue adhesion, resin buildup, and premature micro-wear on sticky web lines, we apply specialized anti-friction surface treatments:
| Coating Type | Key Benefit | Primary Application |
|---|---|---|
| DLC (Diamond-Like Carbon) | Extreme surface hardness and ultra-low friction coefficient | Sticky web converting, pressure-sensitive adhesives |
| TiN (Titanium Nitride) | High micro-abrasion resistance | High-speed paper and corrugated board slitting |
| Anti-Friction Treatments | Zero material drag and smooth web pass-through | Multi-layer barrier film and packaging converting |
Through complete OEM and ODM production capabilities, we build custom carbide shear knives optimized directly for your operational environment.
ISO 9001 Quality Assurance & Factory-Direct Procurement
Multi-Stage Inspection Protocol
100% Dimensional Checks: Precise micrometer and CMM measurements ensure tight outer diameter, inner diameter, and thickness tolerances up to ±0.001 mm.
Rockwell Hardness Verification: Hardness testing (88–92 HRA) guarantees optimal wear resistance and edge toughness.
Optical Edge Inspection: High-magnification optical check verifies zero micro-chipping, burrs, or bevel surface defects.
100% Fit & Performance Guarantee
We back our custom OEM industrial knives with an absolute fit and performance guarantee. Each blade is engineered for exact compatibility with your specific machinery, eliminating fitment issues and reducing scheduled maintenance downtime.
Export-Grade Protective Packaging
Corrosion Defense: Heavy-duty anti-rust oil coating applied prior to sealing.
Edge Protection: Individual rubberized edge guards protect fine cutting bevels.
Secure Shipping: Reinforced wooden and heavy-duty plastic crates built for damage-free global transit.
Tungsten Carbide Slitter Knife FAQs
How much longer do tungsten carbide slitter blades last compared to steel?
Solid and carbide-inlaid tools outlast standard tool steel or high-speed steel (HSS) by 10x to 50x depending on the material cut. The extreme hardness (88–92 HRA) of our tungsten carbide slitter knife products resists abrasive wear, eliminates micro-chipping, and maintains a clean edge across millions of linear meters. This drastically cuts blade-change downtime, dust generation, and material waste.
Can Sharkcutting produce custom carbide blades from physical samples or drawings?
Yes. As a direct tungsten carbide slitter knife manufacturer, we precision-engineer custom tools directly from CAD files (.DWG, .DXF, .STEP, .PDF) or reverse-engineer physical samples using 3D CMM inspection. You can view our custom industrial machine knives design options to see how we maintain tight tolerances down to ±0.001 mm on custom edge profiles.
Which OEM converting and corrugating machine brands are supported?
We supply direct-fit rotary carbide knives and circular blades for all leading machinery brands, available through our tungsten carbide slitter knife for sale catalog:
Corrugators & paper lines: BHS, Fosber, Marquip, Mitsubishi, Agnati, and Peters
Converting & automated cutting: Zünd, Lutz, and high-speed web slitters
What surface coatings and bevel angles are recommended for sticky packaging films?
For sticky web converting, pressure-sensitive adhesives, and multi-layer packaging films, we recommend a double bevel or compound bevel geometry paired with a mirror polish (Ra < 0.1 µm). Adding specialized Diamond-Like Carbon (DLC) or TiN surface coatings to our packaging machine knives prevents glue drag, eliminates resin adhesion, and keeps your production running smoothly. As a full-service tungsten carbide slitter knife supplier, we customize edge bevels and surface treatments to fit your exact web line requirements.
Request a Direct Factory Quotation for Your Tungsten Carbide Slitter Knife
We manufacture industrial cutting tools directly in our facility, eliminating intermediary markup to deliver high-performance blades straight to your production floor. Submit your technical specifications or CAD drawings today, and our engineering team will deliver a comprehensive formal price proposal within 24 hours.
RFQ Technical Requirements
| Parameter | Specifications & Capabilities |
|---|---|
| Critical Dimensions | Outer Diameter (OD), Inner Diameter (ID), Thickness |
| Edge & Bevel Types | Single bevel, double bevel, compound angle, hollow ground |
| Accepted CAD Formats | .DWG, .DXF, .STEP, and .PDF |
| Machinery Lookup | OEM part number and machine model cross-referencing |
| Production Volume | Prototype, single-blade replacement, or full production batches |
Whether you need specialized specifications for high-speed film cutting knives or standard replacement parts for continuous corrugators, we guarantee exact dimensional accuracy and seamless machine installation.
Fast-Track Quote Submission
- Input Key Specs: Provide your target dimensions, bevel geometry, and required production quantity.
- Attach Engineering Blueprints: Upload complete CAD files or physical sample measurements directly to our portal.
- Match Existing OEM Parts: Provide your original equipment part numbers for instant tolerance and fit verification.
- 24-Hour Factory Response: Receive a detailed quotation covering unit pricing, hard-alloy material grade details, surface finish specs, and expected lead times.
