Overview
OEM Machinery Fitment & Target Applications
Corrugated Packaging Machine Fitment
Our factory produces direct replacement slitting knives engineered to exact OEM tolerances for major corrugated packaging lines:
BHS and Fosber
Isowa and Marquip
TCY and Agnati
Key Target Applications
- Lithium-Ion Battery Foil Slitting: Ultra-precise cutting performance delivering zero edge burr on sensitive copper and aluminum collector foils to protect battery cell integrity.
- Flexible Packaging & Film Converting: Sharp, durable blade profiles optimized for high-speed slitting of PET, BOPP, and multi-layer laminates without tearing or stretching.
- Paper & Tissue Rewinding: Heavy-duty circular shear blades designed for continuous operation in paper mill converting and tissue rewinding systems.
Material Grade & Hardness Specification Matrix
At our tungsten carbide slitter knife factory in China, we engineer circular blades across four distinct material grades to match your exact web converting speed, impact requirements, and budget. Choosing the right material grade ensures maximum wear resistance while preventing edge chipping during demanding production runs.
| Material Grade | Hardness | Primary Advantage & Best Application |
|---|---|---|
| Solid Tungsten Carbide | 88–92 HRA | Maximum abrasion resistance and extreme edge retention for continuous high-speed slitting. |
| Carbide-Inlaid Alloy | 88–91 HRA | High-wear carbide cutting edge bonded to a shock-absorbing steel body for heavy-duty shearing. |
| M2 / SKH51 High-Speed Steel | 62–66 HRC | Elevated temperature toughness and reliable impact resistance for high-friction converting. |
| D2 / SKD11 Tool Steel | 58–62 HRC | Economical baseline durability ideal for standard paper and film slitting runs. |
- Solid Tungsten Carbide (88–92 HRA): Delivers up to 50 times longer wear life than traditional steel blades when processing abrasive films, technical paper, and high-density packaging webs.
- Carbide-Inlaid Alloy (88–91 HRA): Blends an ultra-hard carbide cutting perimeter with a flexible steel center to absorb intense operational shock without shattering.
- M2 / SKH51 High-Speed Steel (62–66 HRC): Maintains structural hardness and edge integrity under heat caused by friction during elevated thermal cutting cycles.
- D2 / SKD11 Tool Steel (58–62 HRC): Offers a dependable, budget-friendly entry point for short-run production and standard web shear converting.
To evaluate which composition best balances tool life against initial costs, check out our carbide vs. steel knife guide. For specialized thin-gauge web converting, explore our tailored foil slitter blade carbide options.

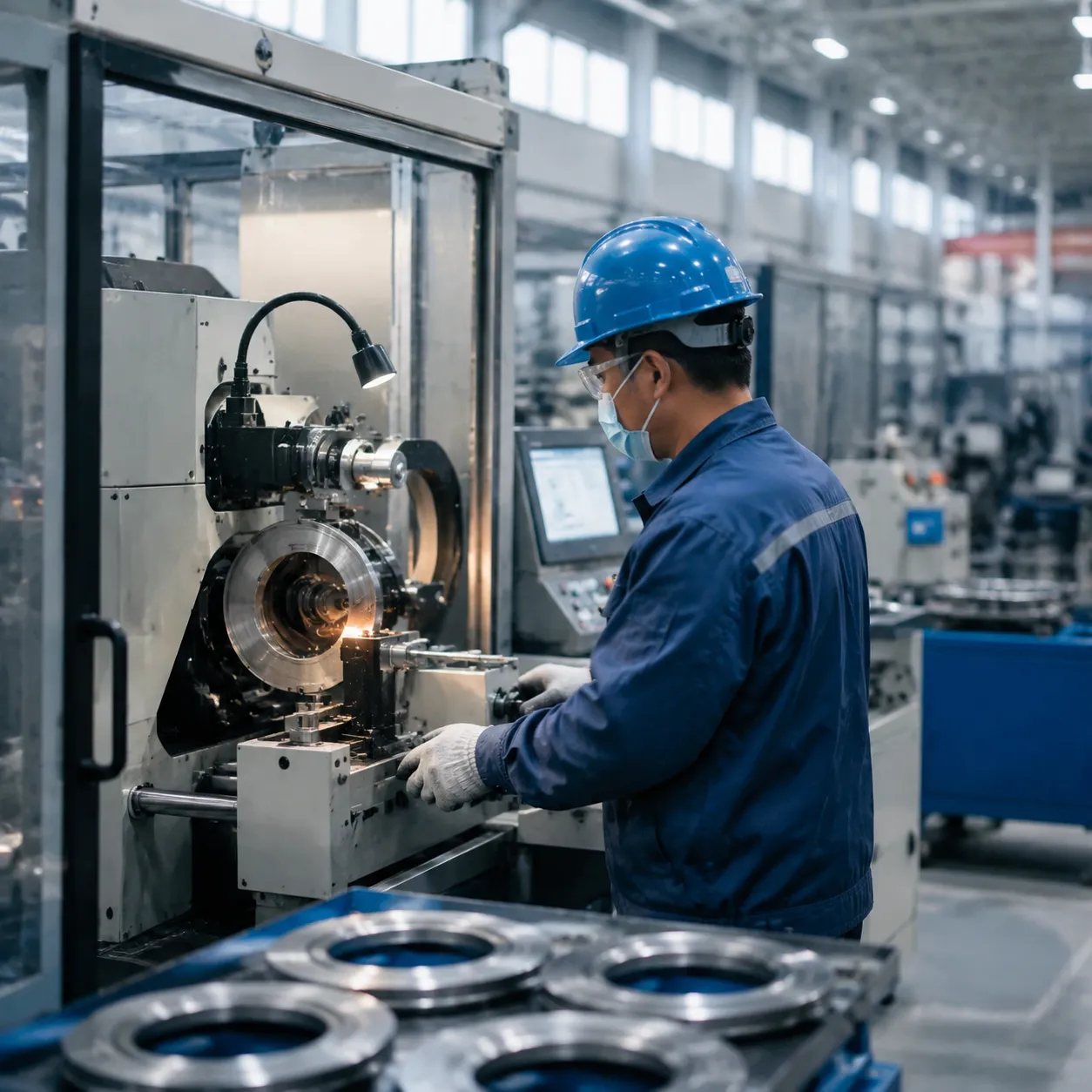

Advanced Manufacturing & Precision Quality Control
Sub-Micron HIP Sintering
- Ultra-Dense Microstructure: We use sub-micron tungsten carbide powder subjected to Hot Isostatic Pressing (HIP). This eliminates internal micro-voids, increases density, and maximizes toughness.
- Chipping Resistance: High-density sintering prevents premature edge chipping during continuous, high-speed shear cutting.

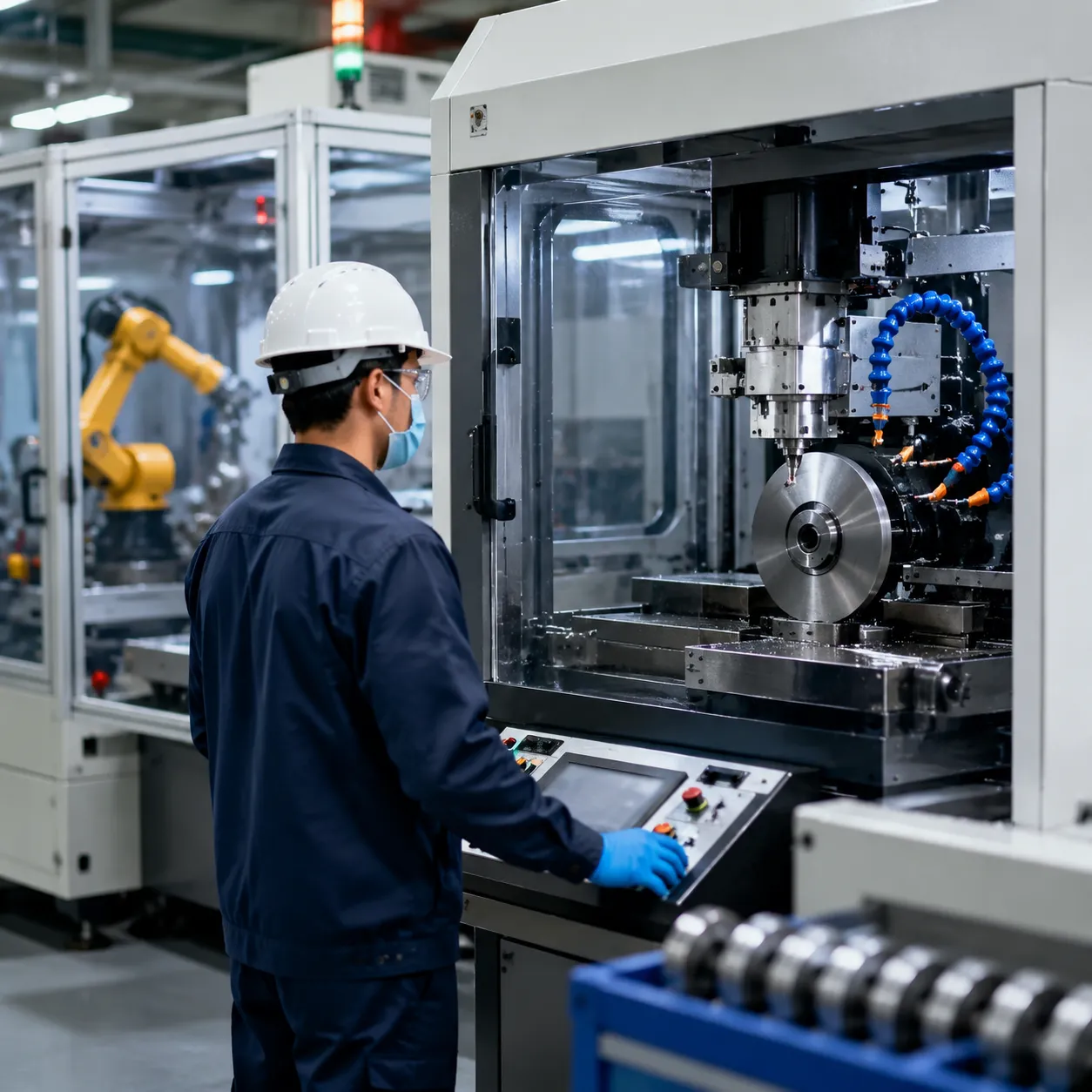

Automated 5-Axis CNC Precision Grinding
- Zero Axial Runout: Our facility leverages 5-axis CNC grinding technology to hold exact blade geometries and zero axial runout.
- Mirror-Finish Edges: Specialized diamond grinding wheels achieve a razor-sharp, mirror-finished edge that minimizes friction and dust creation. Explore our advanced precision machining setup to see how we maintain consistent knife profiles.
Strict Quality Assurance & CMM Inspection
- Micron-Level Tolerances: Every production batch undergoes 100% dimensional verification using CMM optical measurement systems, guaranteeing tight tolerances down to ±0.001mm.
- Zero-Defect Standard: Through our comprehensive quality control workflow, we verify thickness parallelism, outer diameter runout, and edge sharpness before any blade leaves the factory floor.
Cryogenic Treatment & Dynamic Balancing
- Cryogenic Stress Relief: Deep cryogenic freezing relieves internal thermal stresses, preventing distortion or warping during high-rpm operations.
- Dynamic Balance Testing: High-speed rotary slitting blades are dynamically balanced to eliminate vibration, reduce spindle wear on your machinery, and extend overall service life.
Custom OEM & Reverse Engineering Services
As a premier tungsten carbide slitter knife factory in china, we turn complex blade designs and hard-to-find replacement parts into ultra-precise cutting tools. Whether you need exact-fit replacement parts or performance-enhancing modifications, our custom carbide slitter knife OEM capabilities deliver exact geometry built for your specific slitting line.
Blueprint Production & CAD Processing
We manufacture custom rotary slitter blades directly from digital technical files to achieve flawless integration:
Supported CAD Formats: 2D drawings and 3D models including DWG, DXF, STEP, and IGES.
Tolerance Control: Precision CNC grinding ensures strict concentricity and dimensional accuracy.
Rapid Prototyping: Fast turnarounds on custom prototype runs to validate fit and performance before full production.
CMM Reverse Engineering from Worn Samples
When original drawings are missing or obsolete, send your worn or damaged physical sample directly to our facility. Using advanced Coordinate Measuring Machine (CMM) optical measurement and our tailored custom engineering solutions, we extract exact dimensions, reverse-engineer wear patterns, and produce high-precision replacement blades.
Tailored Edge Profiles & Surface Coatings
| Option Category | Specifications | Primary Benefit |
|---|---|---|
| Edge Profiles | Single-bevel, double-bevel, compound-bevel, micro-serrated | Reduced cutting friction, cleaner edge cuts, and minimized material dragging. |
| Functional Coatings | Titanium Nitride (TiN), Diamond-Like Carbon (DLC), Titanium Aluminum Nitride (TiAlN) | Extreme surface hardness, ultra-low adhesion, and extended wear life on abrasive films. |
Direct Factory RFQ & Order Procurement
Fast 24-Hour RFQ Turnaround
Submitting an inquiry takes just a few steps:
Send Specs: Share your drawings (DWG, DXF, STEP) or detailed measurements.
Receive Quote: Our engineering team reviews your cutting application and sends a clear, competitive quotation within 24 hours.
Confirm Details: We verify material grade, edge profile, and tolerances before production starts.
Low MOQ for Custom Prototypes
We support both small-batch testing and high-volume direct supply:
Low Minimum Order: Start with as few as 1–10 pieces for custom prototypes or specialty trial runs.
Tailored Manufacturing: We deliver high-precision custom machine knives tailored precisely to your machine line.
Scalable Production: Seamlessly scale from initial prototype testing to full-batch orders of OEM industrial knives.
Secure Global Export Packaging
Solid carbide edges need maximum protection during transit. We ship directly to your facility using heavy-duty export packaging standards:
Corrosion Protection: Every blade is coated with premium rust-inhibiting oil and sealed in VCI anti-rust film.
Impact Cushioning: Custom edge guards shield micro-grain carbide edges from micro-chipping.
Reinforced Crates: Heavy-duty, custom-fitted wooden cases ensure safe air or sea freight transport anywhere in the world.
Frequently Asked Questions
How do tungsten carbide slitter knives compare to standard tool steel blades?
Tungsten carbide slitter knives last 10 to 50 times longer than conventional D2 or M2 tool steel blades. Their extreme hardness (88–92 HRA) provides exceptional wear resistance, drastically cutting down machine downtime and blade changeovers. While tool steel has a lower initial cost, solid carbide blades offer a much lower total cost per cut in continuous, high-speed slitting operations.
What tolerances can our tungsten carbide slitter knife factory in China achieve?
As a dedicated tungsten carbide slitter knife factory in China, we adhere to tight micron-level manufacturing standards:
- Thickness Tolerance: Up to ±0.001 mm
- Parallelism & Flatness: Within 0.002 mm
- Surface Finish: Mirror polish down to Ra 0.05 µm
- Axial Runout: Near zero via automated 5-axis CNC grinding
Can you manufacture replacement carbide blades from physical worn samples?
Yes. Our engineering team utilizes advanced optical CMM measuring systems to reverse engineer worn or broken blades. We precisely map all critical dimensions, recreate the original bevel geometries, and select the ideal carbide grade to build exact drop-in replacements. Feel free to review our standard and custom circular slitter knives to check compatible configurations.
What is the typical lead time and minimum order quantity (MOQ) for direct factory orders?
- MOQ: Flexible options starting from 1 to 10 pieces for custom prototypes or standard orders.
- Standard Lead Time: Typically 10 to 15 working days depending on specs and surface coatings.
- Express Support: Fast-track production and express air shipping are available for urgent production maintenance.
