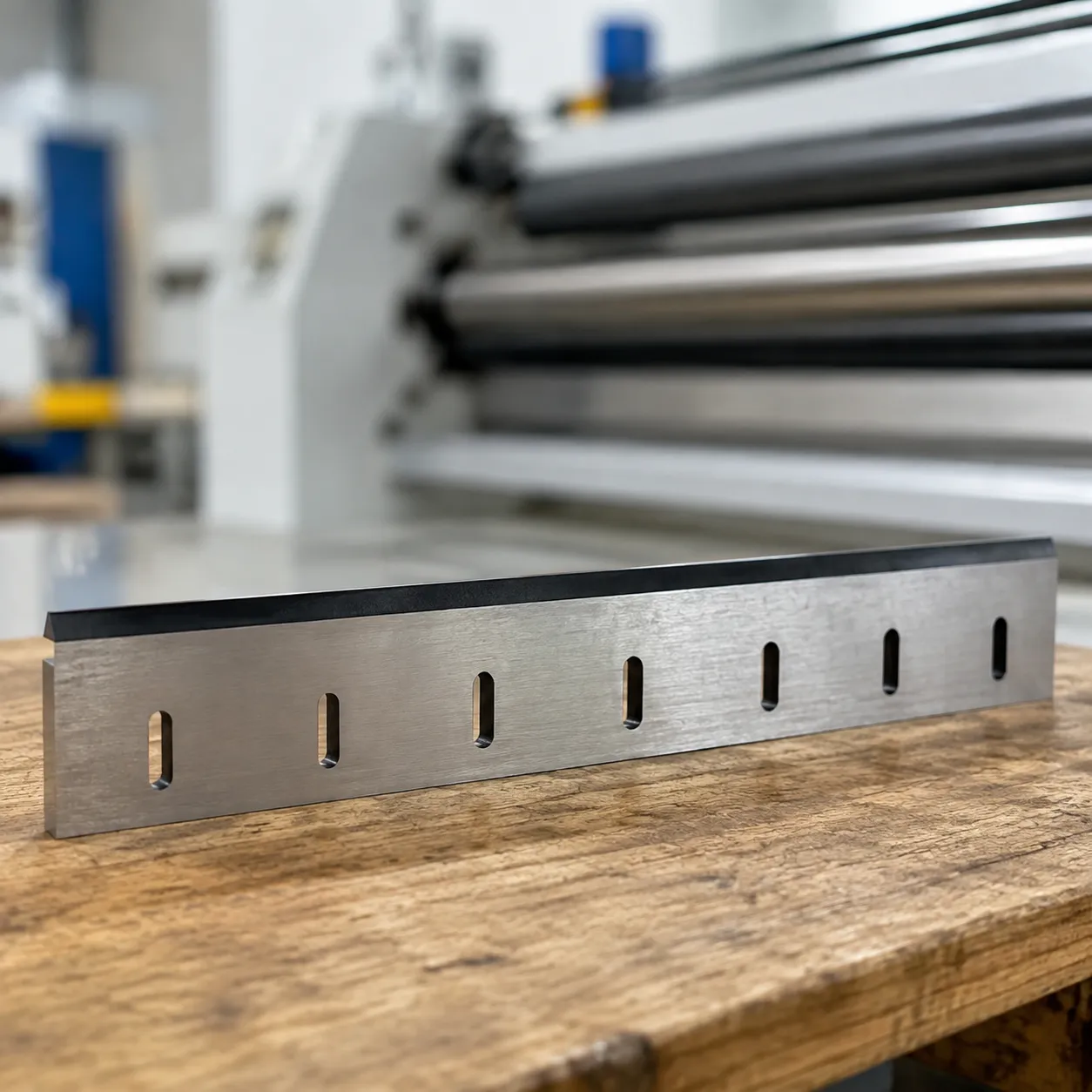

GBC HeatSeal Ultima 65 OEM Slitter Blade Replacement

Precision HeatSeal Ultima 65 Laminator Slitter Blade Replacement

Direct OEM Cross-Reference Compatibility

Our roll laminator slitter blade assembly is a direct drop-in replacement engineered to exact manufacturer dimensions. It integrates seamlessly into factory mounting slots and rear slide tracks without requiring machine modification:

Core Hero Specifications

We manufacture each HeatSeal Ultima 65 cutter replacement using precision grinding technology to guarantee immediate web separation and extended edge retention:

• • Grinding Tolerances: Machined to strict ±0.001 mm dimensional limits for zero track binding or slitter misalignment.
  • Surface Roughness: Micro-finished to Ra < 0.1 µm to eliminate hot-melt resin drag and adhesive accumulation.
  • Trim Consistency: Delivers crisp, burr-free cuts across thermal laminating films up to 27 inches wide.
  • Operational Protection: Ultra-sharp edge geometry reduces mechanical drag, lowering friction on your drive motor and rubber rollers.

HeatSeal Ultima 65 Laminator Slitter Blade Specifications

We engineer every GBC HeatSeal Ultima 65 replacement blade to strict tolerances, ensuring clean web separation across all 27-inch roll laminator films. Evaluating the differences between carbide vs. steel knives allows you to match the right tool steel with your specific laminating output.

Precision Standards & Quality Assurance
Tight Tolerances: Precision-ground down to ±0.001 mm to ensure smooth sliding action without binding inside the trimmer track.
100% CMM Inspection: Every roll laminator slitter blade assembly undergoes full dimensional verification prior to shipment.
Carbide Tooling Option: Our premium tungsten carbide slitter knife design delivers up to 10x longer service life compared to standard high-speed steel laminator cutter blades.

Surface Finish & Special Coatings
Sub-Micron Micro-Finish: Super-polished blade face (Ra < 0.1 µm) reduces friction and eliminates film snagging on heavy gauge laminates.
Non-Stick PTFE Coating: Optional fluoropolymer barrier prevents hot-melt adhesive accumulation on the laminating machine slitter knife edge.
Titanium Nitride (TiN) Coating: Hard surface plating protects the thermal laminator trim blade from abrasive films and extended wear.

Key Performance & Operational Advantages

We engineered our HeatSeal Ultima 65 laminator slitter blade to solve the daily bottlenecks print operators and service technicians encounter—ragged film edges, adhesive drag, and unexpected equipment wear.

• • Burr-Free Web Separation: Delivers clean, continuous slitting across both single-sided and double-sided thermal laminating film webs up to 27 inches wide. Built like high-performance film cutting knives, they eliminate film tearing, fraying, and edge stretching.
  • 100% OEM Fit Guarantee: Direct drop-in compatibility ensures an exact match with factory mounting slots, blade slide tracks, and rear trimmer track brackets without requiring mechanical adjustments.
  • Reduced Drive Motor Strain: By applying the precision edge geometries standard in premium razor slitting knives, our blades minimize mechanical friction during continuous web feeding, significantly reducing wear on your laminator's drive motor and pull rollers.

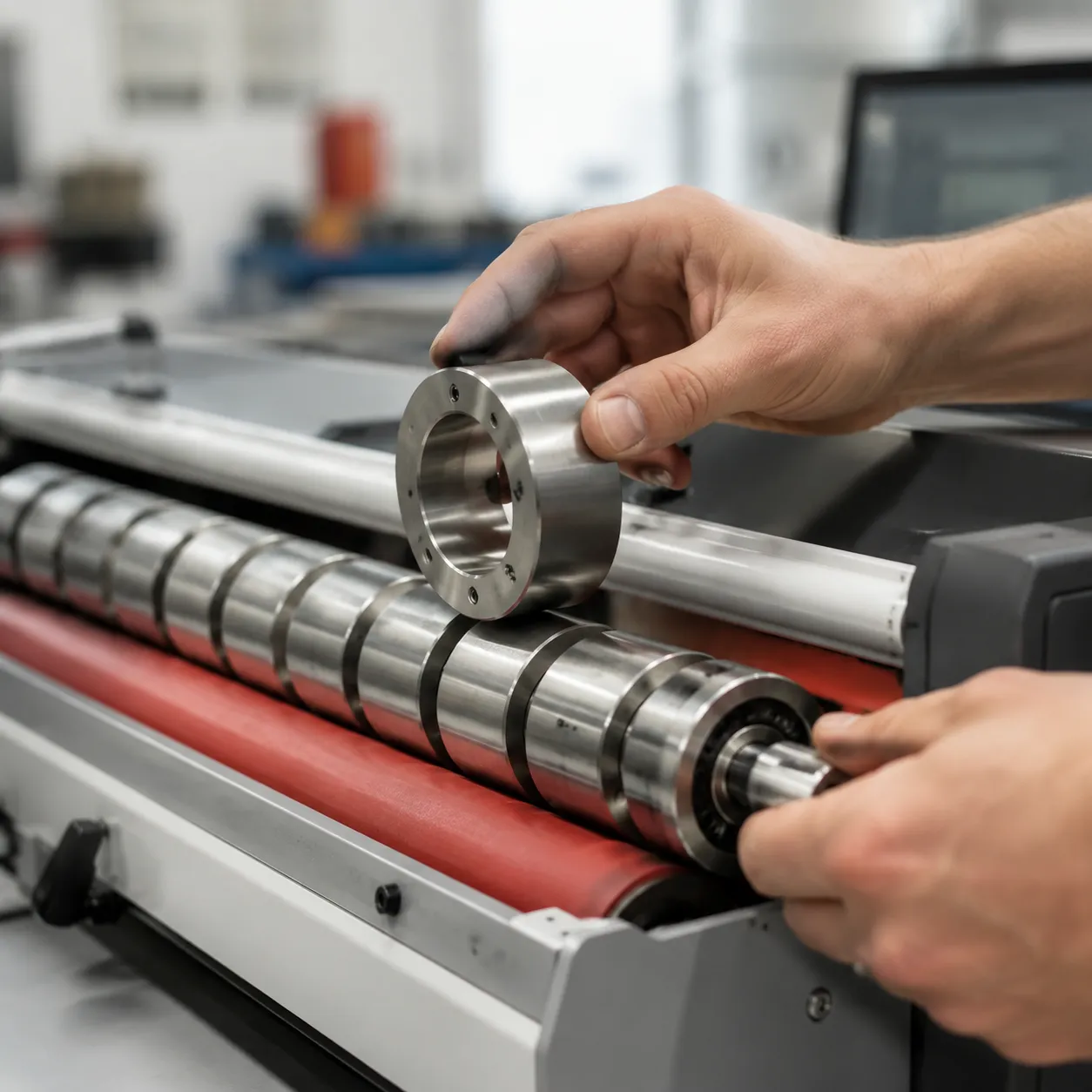

Step-by-Step HeatSeal Ultima 65 Laminator Slitter Blade Installation

Replacing a worn heatseal ultima 65 laminator slitter blade takes under ten minutes when following our standard service procedure. Proper blade installation restores clean web separation and prevents film tearing across your 27-inch roll laminator side trimmer.

1. Safe Removal & Lockout Protocol

• • Power Down: Disconnect the main electrical supply from the laminating machine before accessing the rear trimmer assembly.
  • Engage Safety Locks: Secure the slide rail mechanism and allow heated rollers to cool completely to prevent accidental burns or blade movement.

2. Blade Cartridge Swap

• • Loosen Retention Screws: Access the rear cutter housing and loosen the track retention screws holding the worn roll laminator slitter blade assembly.
  • Remove Old Knife: Carefully remove the dull blade cartridge from the slide track brackets.
  • Install New Blade: Seat the precision Sharkcutting replacement flush into the blade slide track. If your operation utilizes heavy-duty cold work tool steel knives, our dedicated D2 steel heat treatment process ensures the edge maintains structural integrity during installation and high-speed operation.
  • Fasten Hardware: Torque retention screws evenly to prevent blade warping or misalignment within the carrier.

3. Alignment & Tension Verification

• • Check Rail Travel: Manually slide the cutter assembly across the entire 27-inch guide rail. Travel must be smooth with zero binding, resistance, or lateral play.
  • Clear Rail Debris: Verify that no hot-melt adhesive or film buildup obstructs the track. If you experience unexpected track binding during manual movement, applying standard slitter blade jam troubleshooting techniques will help isolate guide rail debris or overtightened retention hardware.
  • Perform Test Cut: Pass a sample laminating film web through the unit to confirm razor-sharp, burr-free trim edges prior to full production runs.

Technical Troubleshooting: HeatSeal Ultima 65 Laminator Slitter Blade Wear vs. Mechanical Issues

Diagnostic Guide: Adhesive Buildup vs. Edge Damage

We frequently see operators replace a heatseal ultima 65 laminator slitter blade prematurely when routine maintenance would restore peak performance. Identifying whether cut quality issues stem from hot-melt adhesive accumulation or physical edge damage maximizes your tool life.

Preventative Maintenance Protocols

To maximize service life and maintain burr-free trimming across your film webs, we recommend applying these preventative maintenance routines:

• • Approved Cleaning Solvents: Clean blades using isopropyl alcohol (IPA 99%) or citrus-based adhesive removers applied with a lint-free microfiber cloth. Avoid steel wool, wire brushes, or scrapers that scratch precision ground bevels.
  • Tracking Blade Mileage: Log total linear footage or operational shifts per blade cartridge. Replacing your thermal laminator trim blade proactively prevents emergency downtime during production runs.
  • Proper Spare Tool Storage: Store spare cutting blades in anti-corrosion VCI packaging within a temperature-controlled environment. Keep bare high-speed steel edges lightly coated with non-detergent machine oil to prevent surface oxidation.

Factory-Direct Ordering & Custom OEM Solutions

We supply high-precision HeatSeal Ultima 65 laminator slitter blade replacements directly from our production facility, giving high-volume operations direct access to factory pricing, consistent quality, and customized cutting tools.

Tiered Bulk Volume Pricing

We structure flexible bulk purchasing programs tailored to the operational demands of different facilities:

• • School Districts & Educational Institutions: Reliable bulk stocking packages designed to keep administrative and print room 27-inch roll laminators running smoothly all year.
  • Commercial Binderies & Print Shops: Tiered volume discounts for heavy-duty finishing environments requiring scheduled blade replacements.
  • Equipment Service Technicians: Convenient multi-packs formatted for service technicians doing routine field repairs and preventative maintenance.

Reverse Engineering & Specialized Blade Fabrication

For unique cutting setups, non-standard film materials, or legacy machinery, our facility provides comprehensive custom engineering capabilities based on your specific requirements:

• • Custom Geometry & Bevel Modifications: We manufacture customized blade thicknesses, precise mounting hole patterns, and modified edge bevel angles to resolve complex film slitting issues.
  • 24-Hour RFQ Turnaround: Submit your physical blade sample or CAD drawings to receive a detailed quote within 24 hours.
  • OEM Production Standards: Our OEM industrial knives fabrication lines ensure every custom run meets strict hardness standards and dimensional tolerances for clean, repeatable slitting.

HeatSeal Ultima 65 Laminator Slitter Blade FAQs

Blade Cleaning vs. HeatSeal Ultima 65 Cutter Replacement

Adhesive accumulation often mimics a dull edge. When your laminating machine slitter knife starts dragging film or leaving uneven edges, evaluate the edge status using this process:
Adhesive Residue (Clean): Hot-melt glue buildup creates dragging and film tearing. Clean the blade edge with isopropyl alcohol or a citrus-based solvent while inspecting for physical damage.
Microscopic Chipping (Replace): If the edge shows nicks, burrs, or rounded geometry under magnification, solvent cleaning will not restore performance. Swap in a fresh GBC HeatSeal Ultima 65 replacement blade to prevent motor strain and jagged web edges.

GBC Ultima 65 and Ultima 65-2 Compatibility

Yes. We precision-engineer our roll laminator slitter blade assembly to exact factory specifications, ensuring seamless compatibility across both original GBC Ultima 65 and Ultima 65-2 units.
Direct OEM Cross-Reference: Replaces GBC part number 1154019, 706111049, 1711567, and PTGBC-ACOUL65SP005.
Drop-in Fit: Matches factory mounting slots, blade slide tracks, and rear trimmer guide rails without requiring machine modifications.

Optimal Blade Materials for High-Volume Laminating

Material selection directly determines tool longevity during continuous daily operation:
M2 High-Speed Steel (62–66 HRC): Standard choice for school districts and light commercial binderies using standard thermal films.
Solid / Inlaid Tungsten Carbide (88–92 HRA): Delivers up to 10 times longer wear life compared to steel, making it the ideal solution for high-volume slitting of thick polyester films and heavy encapsulation work.

We manufacture each heatseal ultima 65 laminator slitter blade using high-grade blade materials engineered to maximize cutting uptime and eliminate continuous edge wear.
