High-Precision Corrugator Slitter Scorer Knife
Utilizing sub-micron Hot Isostatic Pressing (HIP)-sintered carbide (88–92 HRA), our thin blade slitter scorers eliminate board edge crushing, optimize slitting precision, and reduce costly plant downtime.
Technical Specifications Overview
| Specification | Engineering Standard | Performance Impact |
|---|---|---|
| Blade Thickness | 1.0mm – 1.4mm (±0.001mm tolerance) | Clean edge cutting without flute deformation |
| Edge Finish | Mirror-polished (Ra < 0.1µm) | Prevents glue drag and eliminates paper dust |
| Hardness Range | 88–92 HRA (Sub-Micron Carbide) | Up to 10x wear life vs. standard tool steel |
| Material Options | Sub-Micron Carbide, M2 HSS, D2 Tool Steel | Tailored for specific rotary slitting machinery |
Core Engineering Advantages
- Extended Operational Life: Outlasts traditional tool steel up to 10 times, drastically minimizing maintenance stops and blade changeovers.
- Sub-Micron HIP Carbide: Dense, non-porous tungsten carbide matrix resists micro-chipping under high-speed rotary friction.
- Precision Manufacturing: Strict ±0.001mm thickness tolerances guarantee runout control and stable slitting alignment across all board grades.
Operational Advantages & Engineering Features
Core Performance Features
- Zero-Crush Cutting Geometry: Ultra-thin razor profiles ensure precise shearing across 3-ply, 5-ply, and 7-ply corrugated sheets without flute flattening or linerboard cracking.
- Dust Reduction & Clean Edge Finish: A mirror-polished surface (Ra < 0.1µm) prevents glue drag and minimizes paper lint. Combining ultra-smooth blade surfaces with an optimized slitting knife dust removal system provides an exceptional, debris-free edge on heavy-duty paperboard.
- Inline Sharpening Compatibility: Engineered for seamless compatibility with automatic CBN and diamond grinding wheels, providing uniform edge resharpening without chipping.
- Cryogenic Stress Relief: Deep sub-zero thermal treatment stabilizes the carbide structure, preventing blade deformation during continuous operation at line speeds of 350+ m/min.
Performance Impact Summary
| Engineering Feature | Technical Target | Operational Advantage |
|---|---|---|
| Bevel Geometry | Mirror Finish (Ra < 0.1µm) | Prevents glue adhesion and liner tear-out |
| Cryogenic Treatment | Phase-Stabilized Sub-Micron Carbide | Sustains 350+ m/min speeds without thermal warping |
| Grinding Integration | Compatible with Automatic CBN Wheels | Extends grinding stone life while maintaining sharp edges |
OEM Machine Cross-Reference & Dimensional Specifications

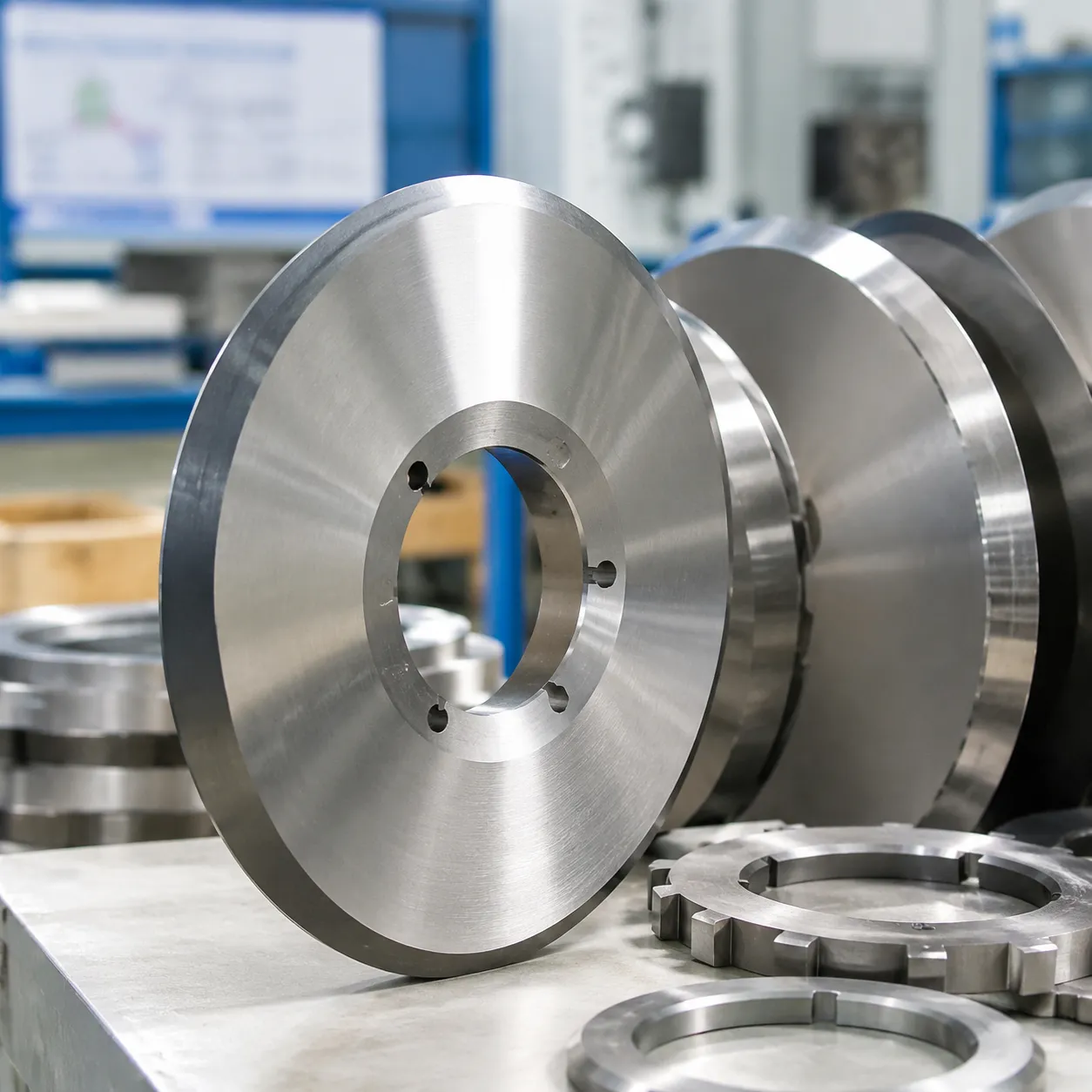

We engineer drop-in circular slitter knives to match exact factory tolerances across all major corrugator lines. Whether running high-speed standard machinery or requiring custom machine knives for specialized retrofits, our corrugator slitter scorer knife production ensures perfect concentricity and zero-play arbor mounting.
| Machine Brand | Outer Diameter (OD) | Inner Diameter (ID) | Thickness (T) | Blade Application |
|---|---|---|---|---|
| BHS | 240 mm | 32 mm | 1.2 mm | High-speed BHS replacement slitter knife units |
| Fosber | 230 mm | 135 mm | 1.1 mm | Precise Fosber slitter scorer blade systems |
| Marquip | 215 mm | 115 mm | 1.2 mm | Continuous high-speed corrugated slitting |
| TCY | 200 mm | 122 mm | 1.2 mm | Standard rotary paperboard slitting cutters |
| Agnati | 260 mm | 114.3 mm | 1.3 mm | Heavy-duty wall cardboard slitting and scoring |
| Custom / Retrofit | 150 – 300 mm | Per Specification | Per Specification | Tailored corrugator slitter blade replacement designs |
- Strict Machining Tolerances: Bore tolerance within ±0.001mm prevents dynamic imbalance and axial runout at 350+ m/min line speeds.
- Full OEM Compatibility: Direct-fit design aligns perfectly with original side plates, automatic grinding wheels, and pneumatic locking hubs.
- Flexible Customization: Custom keyways, drive pin holes, and non-standard thicknesses engineered directly from your technical drawings or physical samples.
Corrugator Slitter Scorer Knife Grade Matrix
We balance material chemistry with precise thermal processing to match your plant's throughput, board grades, and line speeds. Choosing the optimal material for your corrugator slitter scorer knife ensures long run times, sharp edge retention, and minimal edge degradation.
| Material Grade | Hardness | Primary Application | Core Benefit |
|---|---|---|---|
| Solid Tungsten Carbide | 88–92 HRA | High-speed continuous production (350+ m/min) | Maximum wear resistance & 10x operational life |
| M2 / SKH51 High-Speed Steel | 62–66 HRC | High-heat rotary friction lines | High thermal stability & continuous edge sharpness |
| D2 / SKD11 Cold Work Tool Steel | 58–62 HRC | Heavy-duty short-run box conversion | Maximum shock absorption against heavy/recycled flutes |
- Solid Tungsten Carbide (88–92 HRA): Engineered via sub-micron HIP sintering, our tungsten carbide slitter blade options handle intense non-stop corrugated production. Review our carbide vs steel knives guide to evaluate how sub-micron carbide eliminates micro-chipping and reduces downtime.
- M2 / SKH51 High-Speed Steel (62–66 HRC): Formulated for high rotary friction environments. Maintains edge integrity under sustained heat built up during long runs of standard board grades.
- D2 / SKD11 Cold Work Tool Steel (58–62 HRC): Designed for heavy-wall cardboard conversion where impact resistance is essential. Discover how our precision D2 steel heat treatment process provides superior toughness for heavy-duty short-run cutting.
Custom OEM/ODM Corrugator Slitter Scorer Knife Engineering
We provide specialized custom manufacturing and precise engineering for non-standard corrugator slitter scorer knife requirements. Whether you are retrofitting older converting equipment or upgrading high-speed lines, our specialized custom engineering solutions deliver exact dimensional accuracy, tighter tolerances, and extended blade longevity tailored to your plant setups.
Technical Capabilities & Reverse Engineering
- Blueprint-to-Part Manufacturing: We manufacture directly from your DWG, STEP, or PDF technical files to ensure seamless drop-in fitment.
- CMM Reverse Engineering: Send us a worn knife sample. Our CMM optical and tactile scanning recreates exact CAD specs while restoring optimal cutting edge geometry.

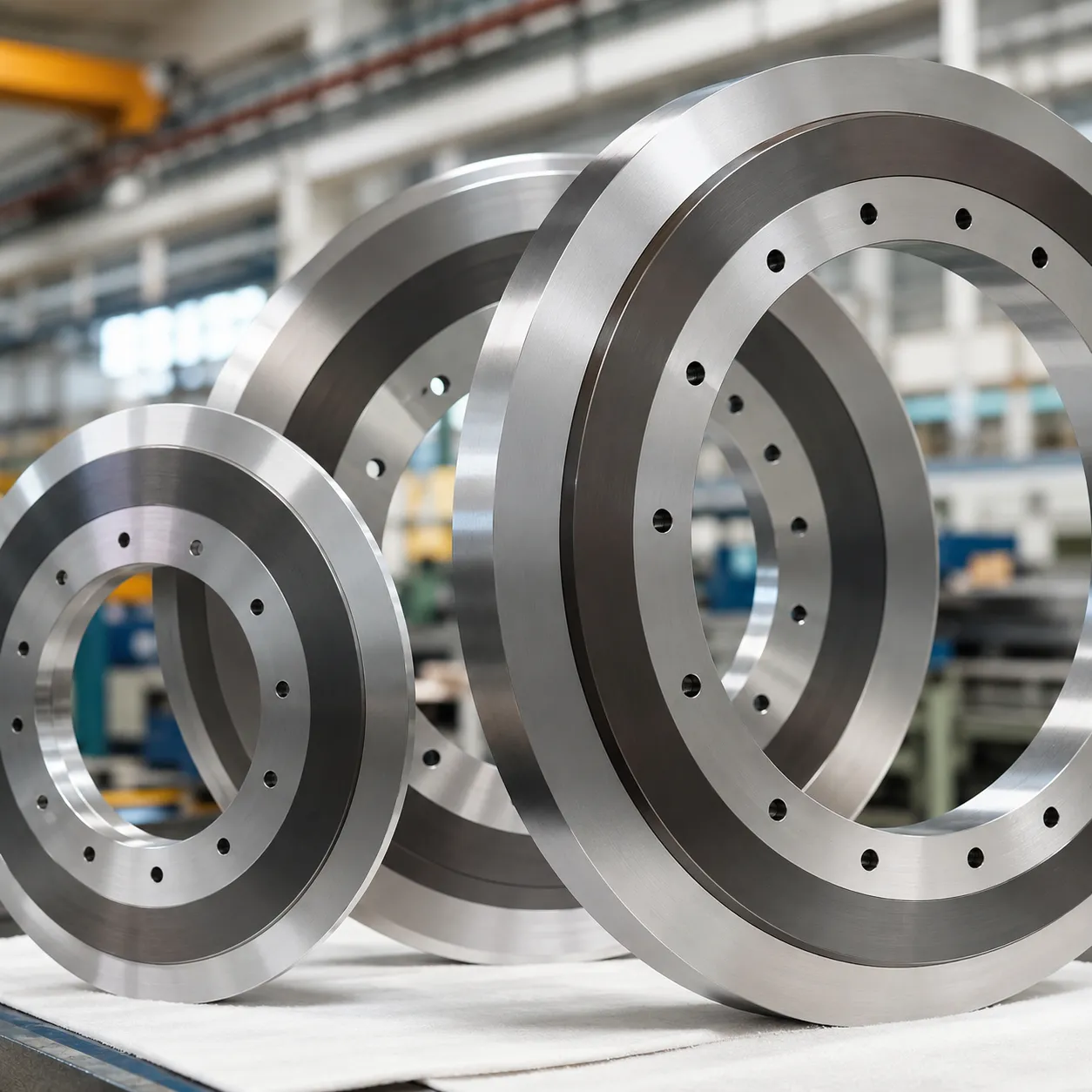

- Custom Dimensions & Bevels: We produce custom corrugated machine knives ranging from 150mm to 300mm outer diameters, tailored bore sizes, keyways, and specialized edge bevel angles.
| Engineering Process | Technical Details | Plant Operational Advantage |
|---|---|---|
| CAD/CAM File Machining | Direct processing from DWG, STEP, or PDF | 100% profile accuracy; zero dimensional deviation |
| CMM Physical Scanning | Multi-axis CMM optical profiling of worn samples | Replaces obsolete, custom, or undocumented original OEM blades |
| Anti-Stick Coatings | PTFE, TiN, and PVD surface treatments | Prevents adhesive buildup and glue drag in high-tack box production |
| Grade Optimization | Tailored sub-micron carbide selection | Balances impact resistance and wear life for high-recycled board |
Through our end-to-end OEM/ODM services, every custom tungsten carbide slitter blade undergoes rigorous static and dynamic balancing, ensuring smooth operation at line speeds exceeding 350 m/min.
Corrugator Slitter Scorer Knife TCO & ROI Analysis
We engineer our tooling to deliver measurable ROI across three critical plant metrics:
- Downtime Reduction: Engineered from sub-micron carbide, each tungsten carbide slitter blade offers up to 10 times the operational wear life of standard steel tools. Fewer blade replacements mean significantly fewer order-switching delays during continuous high-speed production runs. Implementing proactive line maintenance and standard slitter blade jam troubleshooting procedures keeps your slitter-scorer section running without unexpected halts.
- Scrap Rate Minimization: Ultra-fine mirror polishing (Ra < 0.1µm) ensures razor-sharp, burr-free cuts that protect edge flutes on 3-ply, 5-ply, and 7-ply board. Eliminating glue drag and ragged trim drastically reduces trim waste and customer board rejections.
- Extended Grinding Stone Life: By precisely balancing knife hardness (88–92 HRA), our thin blade slitter scorer reduces abrasive friction on automatic inline sharpening wheels, extending the lifespan of your diamond and CBN grinding stones.
| ROI Metric | Operational Improvement | Bottom-Line Value |
|---|---|---|
| Blade Longevity | Up to 10x longer operational life vs. steel | Cuts blade replacement frequency and setup labor |
| Cut Quality | Zero-crush cutting with burr-free board edges | Reduces board scrap rates and edge-trim rework |
| Tooling Synergy | Optimized hardness profile for inline grinding | Lowers consumption rates of diamond sharpening wheels |
Frequently Asked Questions
How to select the right carbide grade for a corrugator slitter scorer knife?
We match carbide grain structure and binder ratios directly to your production line speed and paperboard composition:
| Carbide Grade | Hardness | Grain Size | Ideal Operating Condition |
|---|---|---|---|
| Ultra Fine-Grain (6% Co) | 91.5–92.5 HRA | 0.5 µm | Ultra-high speeds (300+ m/min), heavy recycled paperboard, maximum wear resistance |
| Sub-Micron (8% Co) | 89.5–91.0 HRA | 0.8 µm | Standard high-speed corrugators, balanced impact toughness and edge retention |
| Micro-Grain (10% Co) | 88.0–89.5 HRA | 1.0 µm | Heavy-duty double/triple-wall board, high shock loading environments |
What is the wear life difference between Tungsten Carbide and HSS blades?
Our solid tungsten carbide corrugator slitter scorer knife options deliver 8x to 10x longer service life than standard high-speed steel (HSS) or D2 blades. Standard steel knives typically require re-sharpening every 300,000 to 500,000 linear meters. In contrast, our sub-micron carbide thin blades cut cleanly for 3,000,000 to 5,000,000 linear meters before requiring an automatic sharpening cycle.
How does mirror polishing (Ra < 0.1µm) prevent paper dust and glue drag?
Standard ground edges (Ra 0.4–0.8µm) have microscopic surface valleys that capture wet starch adhesive and paper fibers during continuous slitting. Our ultra-fine mirror polish eliminates these mechanical anchor points:
- Eliminates Starch Buildup: Wet adhesive slides off the mirror surface without bonding.
- Reduces Slit Friction: Cuts dragging resistance by up to 40% to preserve clean sheet edges.
- Prevents Edge Dusting: Smooth shearing action cuts cleanly through paper fibers instead of tearing them.
Can custom slitter blades be reverse engineered from worn physical samples?
Yes. We use 3D Coordinate Measuring Machines (CMM) and optical laser profilers to extract exact original dimensions, bevel profiles, bore tolerances, and pin-hole configurations—even from cracked or heavily worn blades. Through our custom industrial knives engineering service, we rebuild technical CAD drawings, select optimal carbide metallurgy, and manufacture direct-fit replacements for any corrugated machinery brand.
